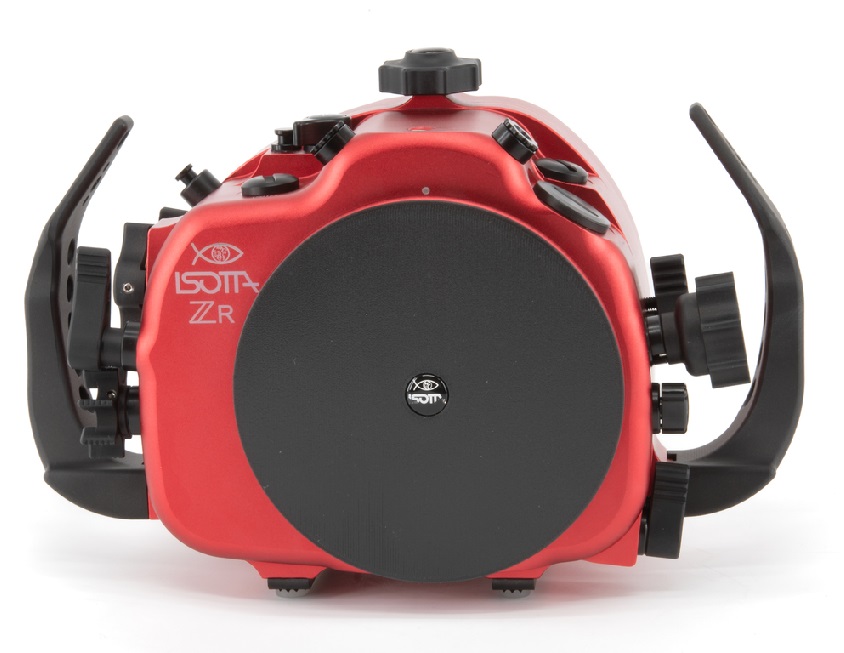

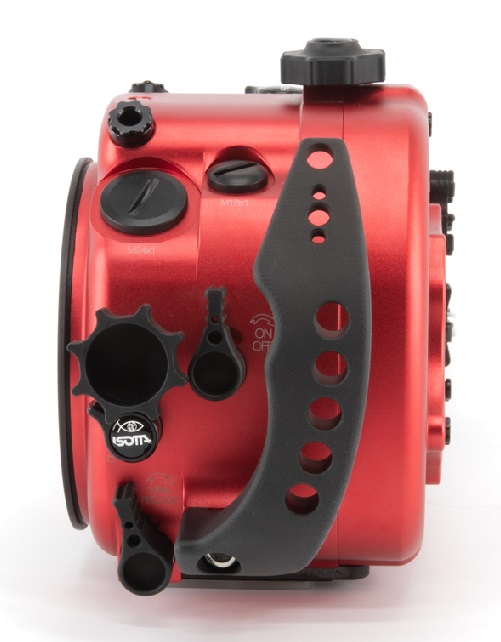

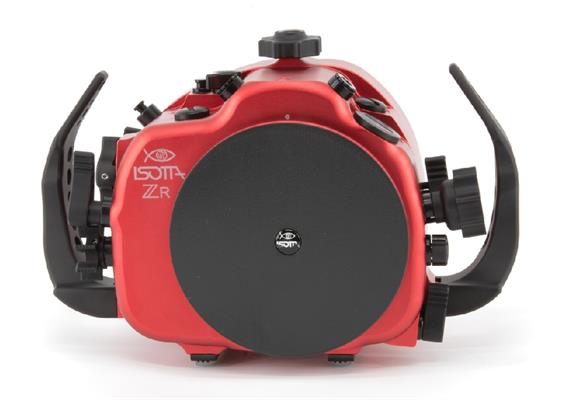

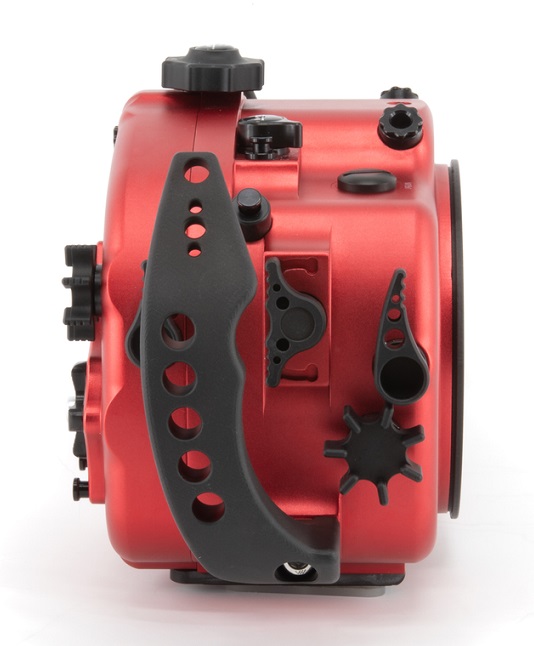

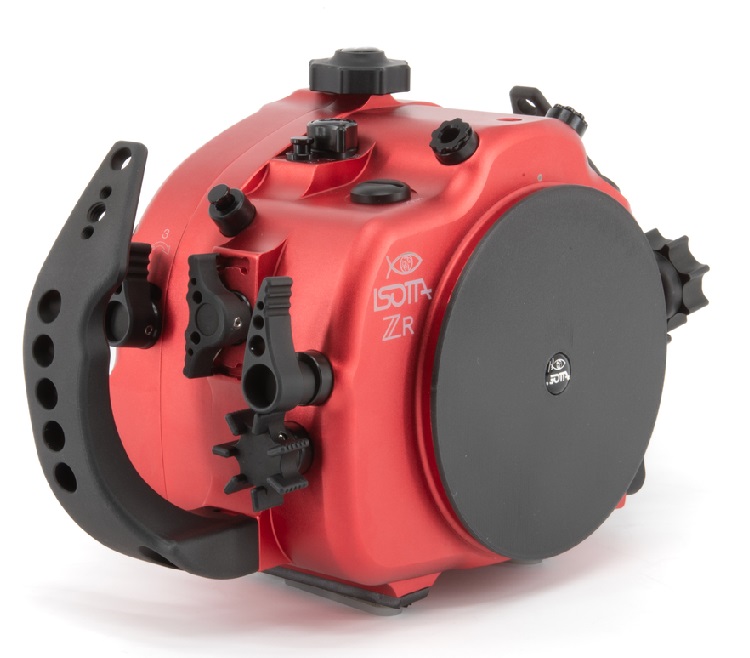

Isotta Underwater Housing for Nikon ZR camera (without port)

3’640.00 CHF / Pc.

incl. 8.1% Tax

Stock: 0

Art. no.: 4835

NumberPc.

Remember

Technical Data

Red color anodized aluminum body
Ergonomic side handles, adjustable (via optional accessory)
Two fiber optic connections standard (to use the flash needs an optional trigger)Two M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead
Back housing completely detachable from the front housing
Tray with lock for the easy insertion of the camera
Single-hand closing knob for the back of the housing
Aluminum buttons and dials with engraved symbols identical to camera controls

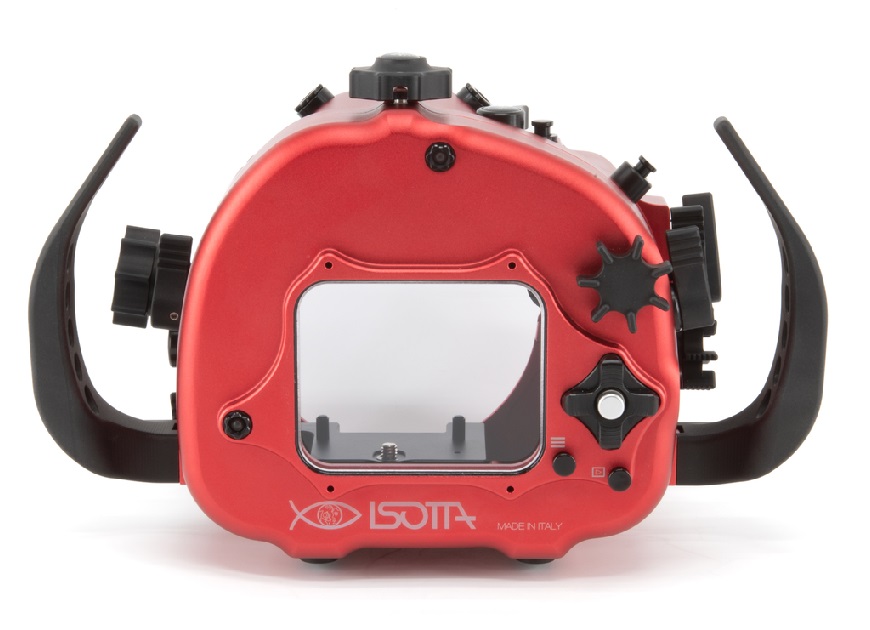

Wide back display viewfinder glass
Standard ISOTTA viewfinder
Double O-Ring seals on all buttons and removable parts
Moisture sensor with LED indicator (replaceable battery)

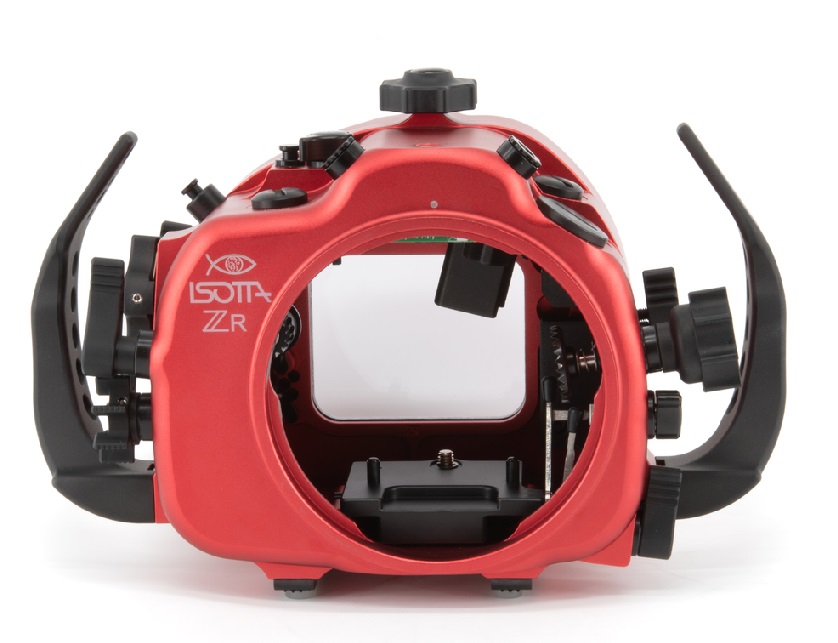

Removable port B120 bayonet
Safety lock on the porthole to prevent accidental opening
Wide, rubber covered feet for solid footing on boat floors or sea floor
M8 hole located on upper side of the housing for various accessories such as focus lights
Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
Prepared for ISOTTA vacuum system (not included)
External viewfinders can be mounted, ISOTTA and INON X-2 compatible
Working depth: 100 meters
Weight: 2.700 gr
Sizes (LxHxP): 292mm x 186mm x 138mm

Commands

ON/OFF lever of the Nikon ZR
Ergonomic camera shutter-release/REC button lever, con leva ergonomica e autofocus, easy to use with gloves
Lens release lever
Zoom dial
Port safety lever
Main command dial
Photo/video selector
Zoom control
Fn1 button
Fn2 button
Fn3 button
Sub-command dial
Multi selector
Menu access button
Playback button
