Isotta Underwater Housing Alpha 1II for Sony Alpha A1II (without port)

Isotta Housing Sony Alpha A1II

The underwater housing for the Sony Alpha A1 allows you to exploit the full potential of the camera and take amazing pictures underwater.

Years of experience have gone into developing techniques and innovations that have resulted in an easy-to-use, highly professional product. Clearly labeled, laser-etched buttons with a long service life provide easy access to all the camera's important controls, even when wearing gloves.

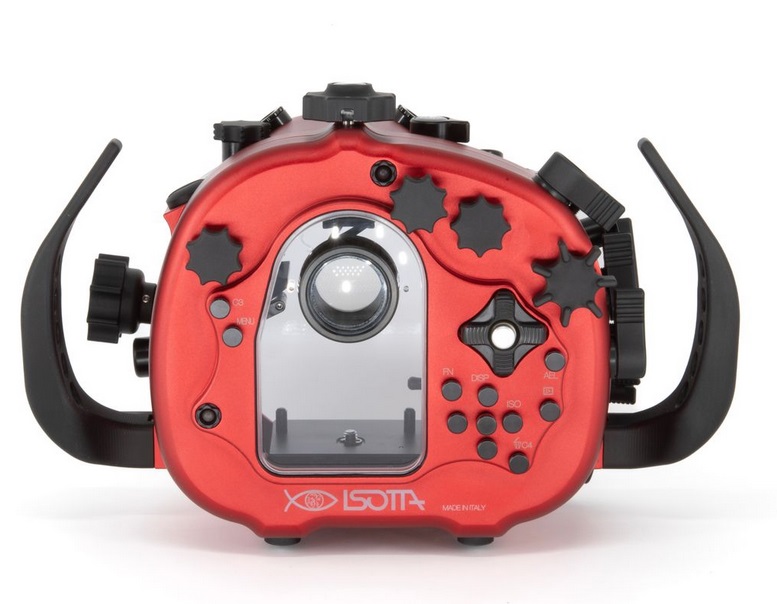

The rear door has a large viewing window for a good camera display and optical viewfinder view and is completely detached from the front housing to facilitate camera mounting.

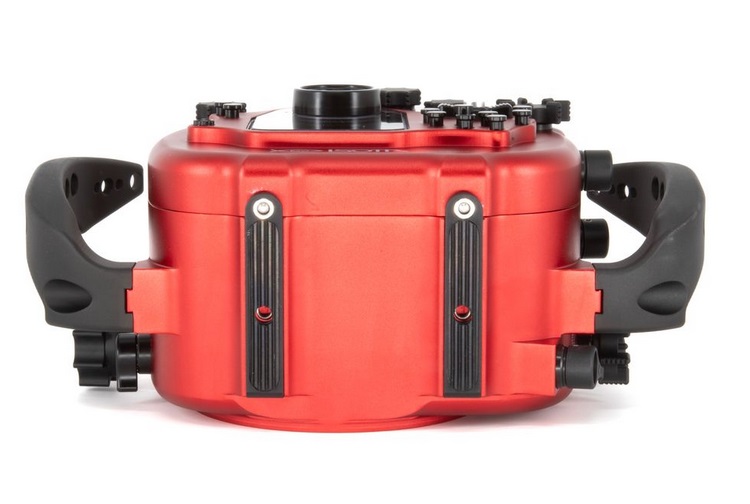

The housing is very stable thanks to robust and wide rubber feet on the underside.

OPEN/CLOSE WITH ONE HAND

Opening and closing the Sony Alpha A1II is very easy and requires no effort on the part of the user thanks to the upper helicoil and lower centered pins; the camera is simply placed in the housing on a sliding tray that holds the camera securely in place.

CONNECTORS AND ADAPTER RINGS

A range of ports and extension rings are available in the designated area. The removable port is mounted to the Sony Alpha A1 housing thanks to markings and a 120 mm bayonet connection. The interchangeable ports and adapter rings allow the use of most lenses available on the market for maximum versatility and performance.

LIGHTING

Two fiber optic ports allow the use of an external flash via the manual trigger (optional). The housing has two M16 holes and one M24 hole for installing accessories such as sync cables, vacuum valves, and monitors.

CONSTRUCTION AND SAFETY

Only the best materials are used in the manufacture of Isotta housings, such as anodized aluminum, which is anticorodal and thermo-coated, and stainless steel. A durable product that requires light and easy maintenance by the user. Two high-precision, high-quality O-ring seals protect and ensure a perfect and secure seal on all moving and/or removable parts; a red alarm for moisture/water inside the housing is powered by a user-replaceable battery. The working depth is 100 meters. Various accessories can be attached directly to the handles or via an upper M8 threaded hole, via the Isotta upper handle, or via the M6 threaded holes on the bottom.

COMMANDS

• ON/OFF lever of the Sony Alpha1 II
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Front dial
• C1 button / C2 button / C3 button
• C4/Delete button
• Mode dial
• Drive mode dial
• Still/Movie/S&Q dial
• Focus mode dial
• Zoom dial
• Port safety lever
• Movie (REC) lever
• AF-ON lever
• Rear dial R / Rear dial L
• Rear dial R unlock button
• Menu button
• AEL button
• Multi-selector buttons
• Playback button
• Buttons of the control wheel
• Fn button

TECHNICAL DATA

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard (to use the flash needs an optional trigger)
• Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Standard ISOTTA viewfinder
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port B120 bayonet
• Safety lock on the porthole to prevent accidental opening
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• M8 hole located on upper side of the housing for various accessories such as focus lights
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
• Prepared for ISOTTA vacuum system (not included)
• External viewfinders can be mounted, ISOTTA and INON X-2 compatible
• Working depth: 100 meters
• Weight in air: 2,6KG
• Sizes (LxHxP): 291mm x 187mm x 130,5mm

SPARE PARTS

• 3714 - Maintenance o-ring set for Sony Alpha1 II housing
• 1895 - B120 housing front lid
• 1905 - M16X1 cap
• 3352 - M24X1 cap

OPTIONAL

• Hotshoe for Sony Alpha1 II
• Manual trigger
• Vacuum system
• N5 bulkhead
• S6 bulkhead
• Vacuum system ISOTTA
• Handles extension
• ISOTTA right or angled viewfinder

IN THE BOX

• Housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections (to use the flash needs an optional trigger)
• Spare o-ring kit
• Silicone grease 15gr / 0,5 oz
• 2 years manufacturer warranty (excluding batteries)
