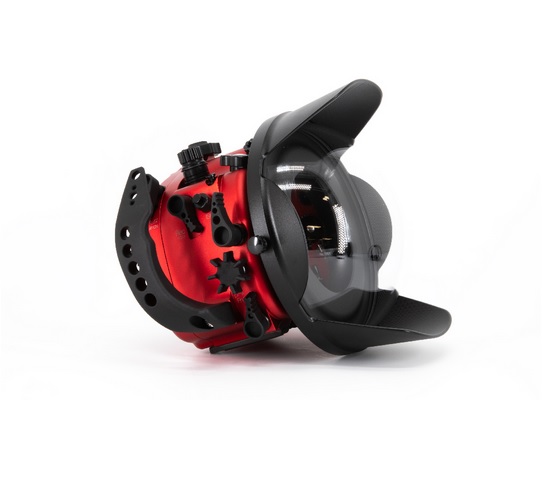

Isotta Underwater Housing for Nikon Z6III camera (without port)

Isotta Underwater Housing Nikon Z6III (without port)

An ergonomic, highly professional product that offers the highest quality and improved performance underwater. Entirely manufactured in Italy.

Underwater housing Nikon Z6III

The anodized aluminum housing is very robust and protects the camera from harmful influences. Its stylish, compact, and ergonomic design was developed specifically for the groundbreaking Nikon Z6III mirrorless models.

The handles fit ergonomically in the hand, making the camera very comfortable to hold even during long dives.

Easy access to all important camera controls thanks to clearly labeled, laser-engraved, durable buttons that are easy to operate even with gloves and dry diving gloves.

A quick-release camera mounting plate allows the camera to be positioned, and a lever locks the compartment inside the housing.

The back of the housing features the usual large, scratch-resistant display for unrestricted viewing, as well as an optical viewfinder that can be upgraded with external viewfinders.

Open and close with one hand

The Nikon Z6III case closes with Isotta's one-hand, one-button system. Thanks to double O-rings and double steel pins on the bottom of the case, this is quick, easy, and secure.

Technical Data

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard (to use the flash needs an optional trigger)
• Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Standard ISOTTA viewfinder
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port B120 bayonet
• Safety lock on the porthole to prevent accidental opening
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• M8 hole located on upper side of the housing for various accessories such as focus lights
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
• Prepared for ISOTTA vacuum system (not included)
• External viewfinders can be mounted, ISOTTA and INON X-2 compatible
• Working depth: 100 meters
• Weight: 2.700 gr
• Sizes (LxHxP): 292mm x 186mm x 138mm

Commands

• ON/OFF lever of the Nikon Z 6III
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Zoom dial
• Port safety lever
• Fn1 button lever
• Fn2 button lever
• Movie-record button lever (REC)
• AF-ON button lever
• Photo/movie selector lever
• Monitor mode selection lever
• Mode dial
• Main command dial
• Sub-command dial
• Exposure compensation button
• ISO button
• Deleting pictures button
• Playback button
• Release mode button
• AE-L button
• Multi-selector joystick
• OK button
• MENU button
• i button
• DISP button
• Thumbnail playback and focus point button
• Zoom in button

Optional

• Hotshoe for Nikon D500 and Nikon Z 6III housings
• Nikonos 5 bulkhead
• S6 bulkhead
• Vacuum system ISOTTA
• Handle extension
• ISOTTA right or angled viewfinder
• Upper tray MEDIUM

Spare Parts

• 4686 - Set O.R. for Nikon Z 6III housings
• 1895 - Housing front lid B120
• 1905 - M16X1 cap
• 3352 - M24X1 cap

In the box

• Housing
• Front lid
• Handles
• Standard ISOTTA viewfinder
• Humidity sensor
• Fiber optic connection bulkhead (to use the flash needs an optional trigger)
• Replacement O-ring kit
• Silicone lubricant 15gr / 0,5 oz
• Warranty: 2 years manufacturer's (excluding batteries)
