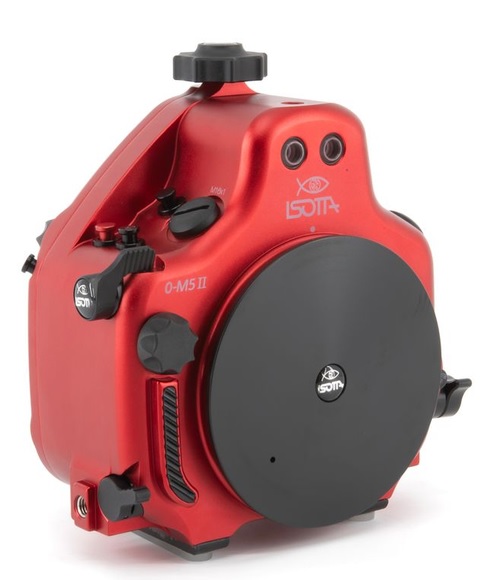

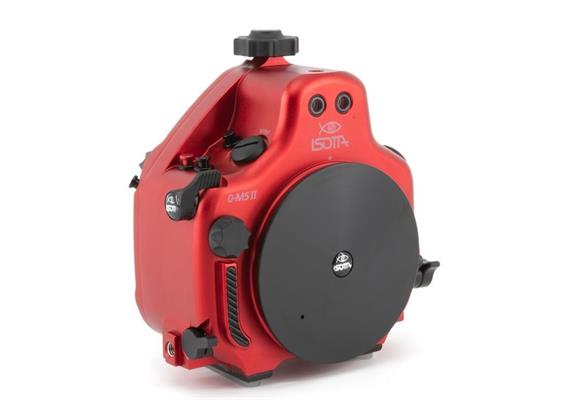

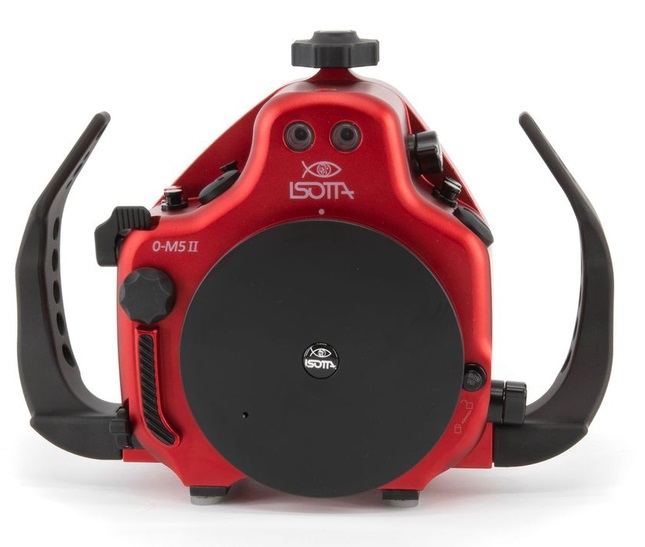

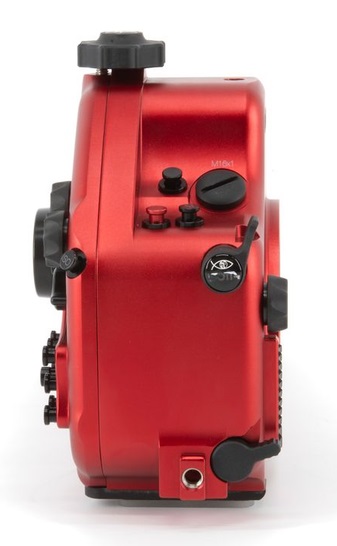

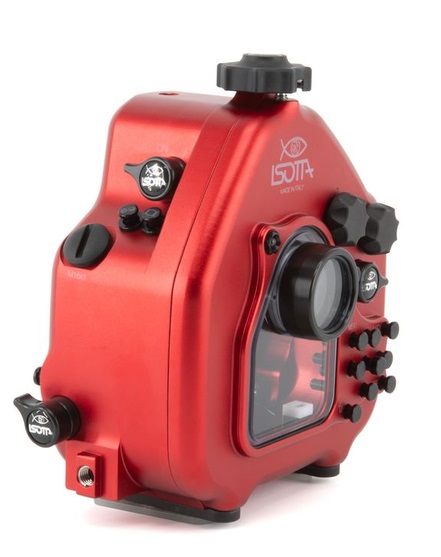

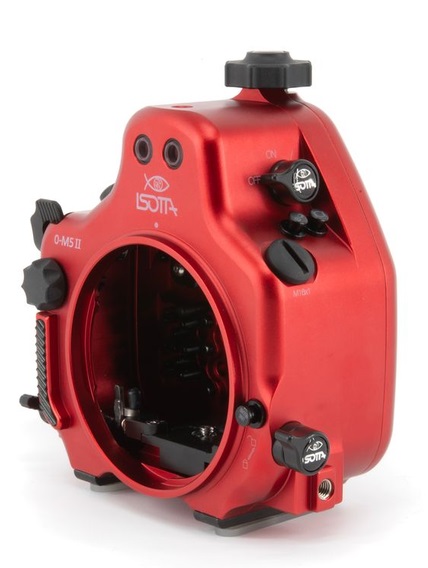

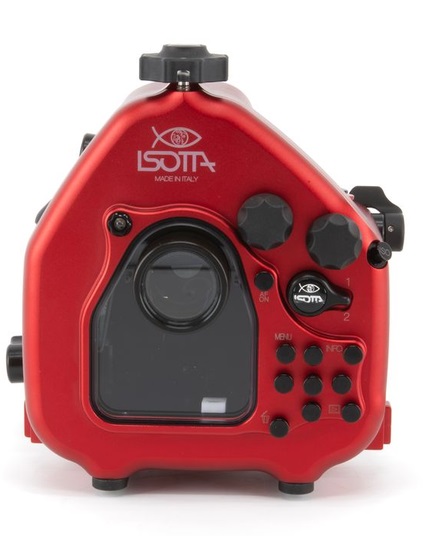

Isotta Underwater Housing OM-5 II for OM System OM-5 II camera (without port)

Isotta OM-5 II Underwater Housing for OM System OM-5 II Camera (handles not included)

Technical Data

• Red color anodized aluminum body
• Ergonomic side handles not included
• Two fiber optic connections standard (to use the flash needs an optional trigger)
• Two M16 holes for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Standard ISOTTA viewfinder
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port B102 bayonet
• Safety lock on the porthole to prevent accidental opening
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• M8 hole located on upper side of the housing for various accessories such as focus lights
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
• External viewfinders can be mounted, ISOTTA and INON X-2 compatible
• Working depth: 100 meters; Sizes (LxHxP): 178mm x 189mm x 106mm

Commands

• ON/OFF lever of the OM System OM-5 mark II
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release button
• Front dial
• Mode dial
• Mode dial lock button
• Port safety lever
• Movie (REC) lever
• ISO button
• Rear dial
• INFO button
• Playback button
• Menu button
• Sequential shooting/self-timer button
• Live View button
• Preview button
• OK button
• Arrow pad buttons
• Erase button
• AEL/AFL/Key button
• Fn lever

Optional

• Nikonos 5 bulkhead
• S6 bulkhead
• Vacuum system ISOTTA
• Handles
• Handle extension
• ISOTTA right or angled viewfinder
• Upper tray SMALL

Spare Parts

• 1661 - Set O.R. for Olympus serie E-M5 and OM System serie OM-5 housings
• 1866 - Housing front lid B102
• 1905 - M16X1 cap

In the box

• Housing
• Front lid
• Standard ISOTTA viewfinder
• Humidity sensor
• Fiber optic connection bulkhead (to use the flash needs an optional trigger)
• Replacement O-ring kit
• Silicone lubricant 15gr
• Warranty: 2 years manufacturer's (excluding batteries)
