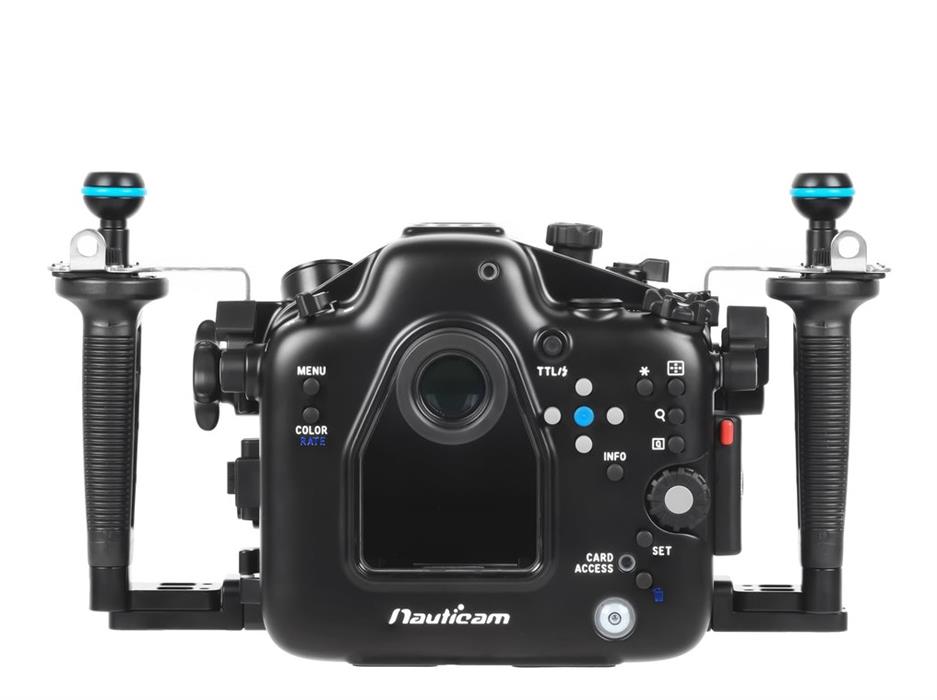

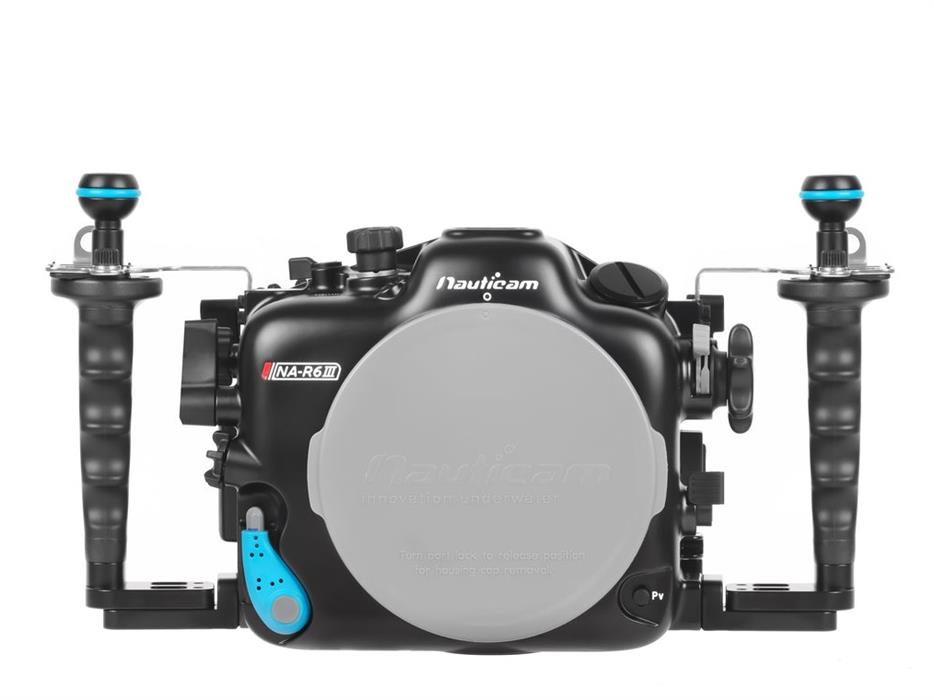

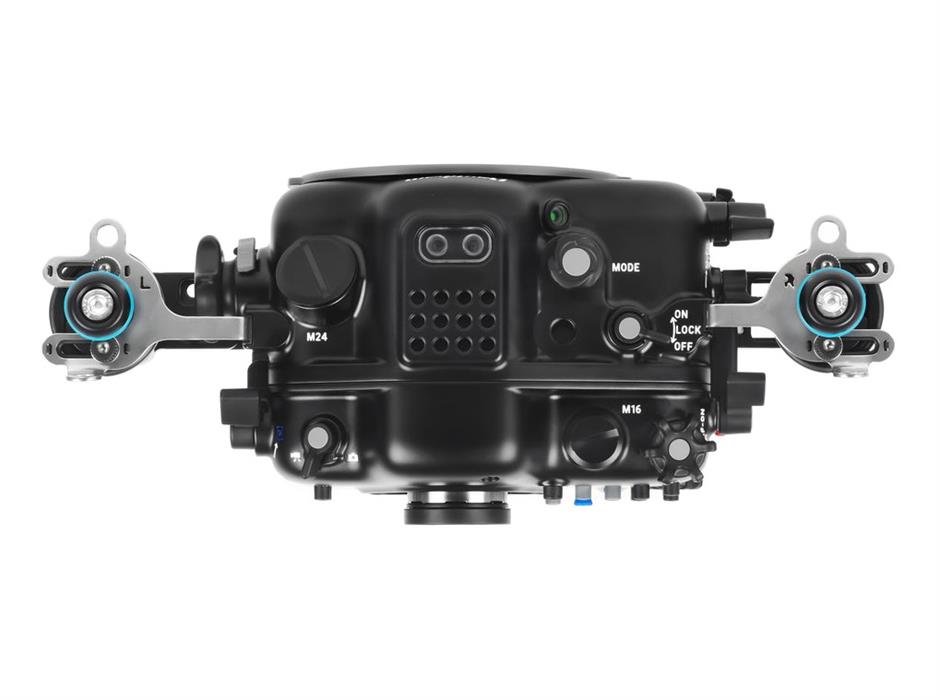

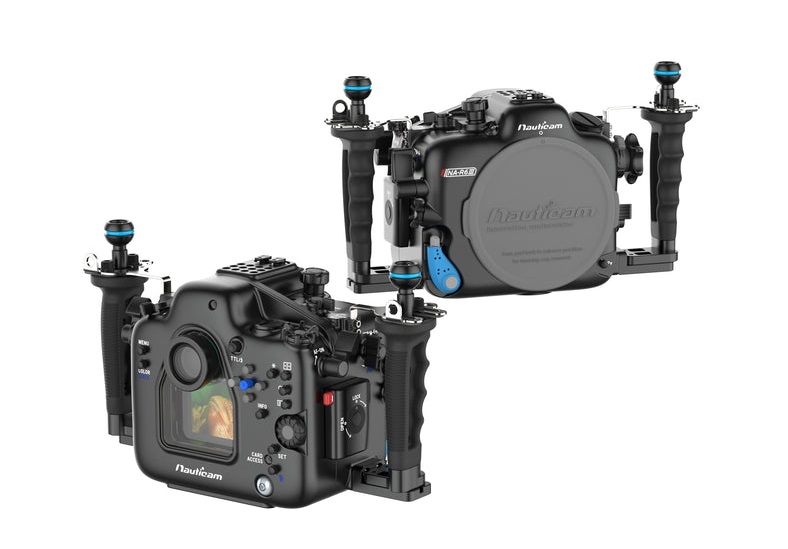

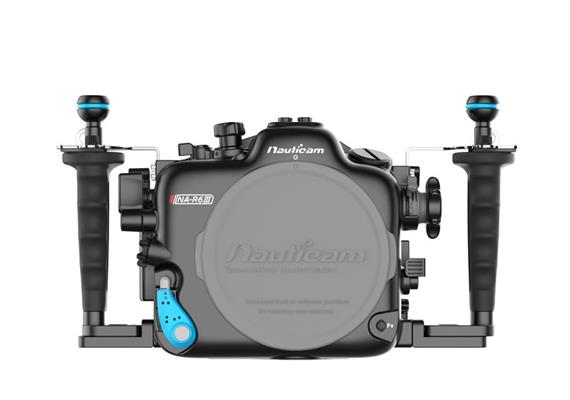

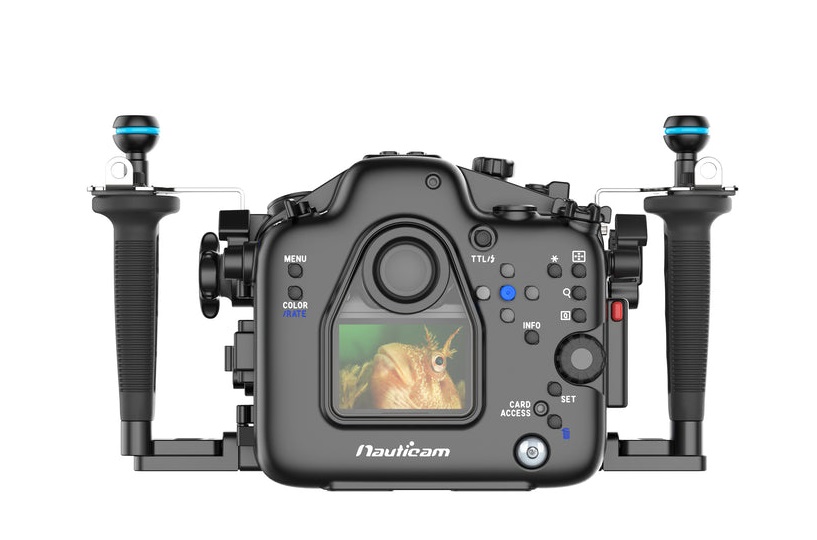

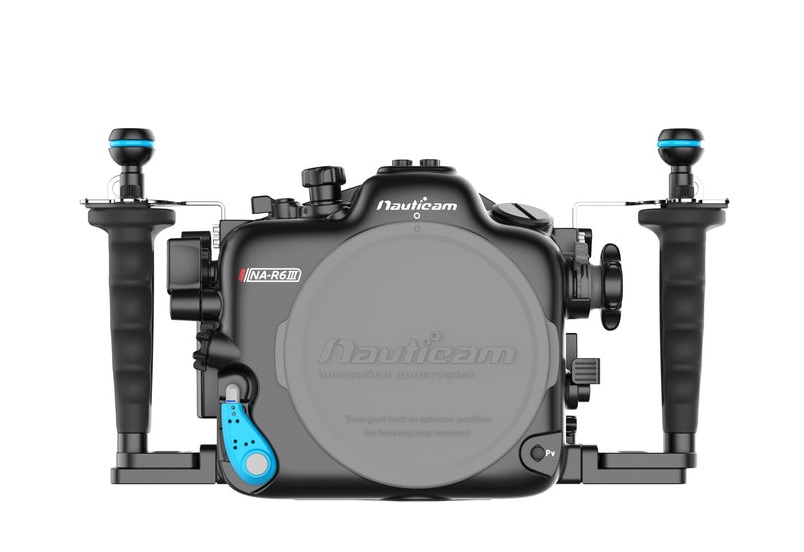

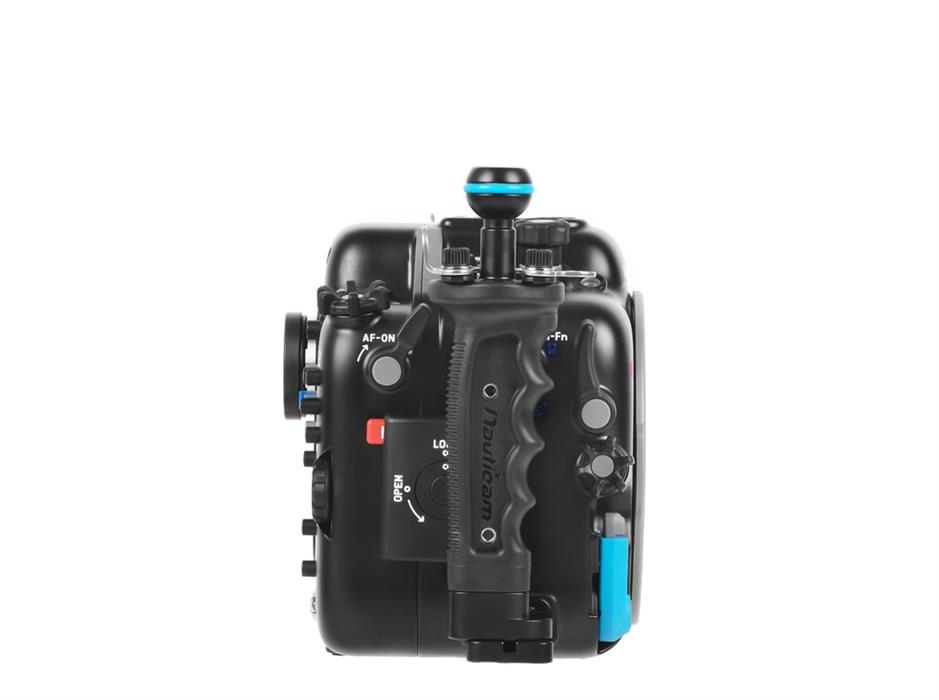

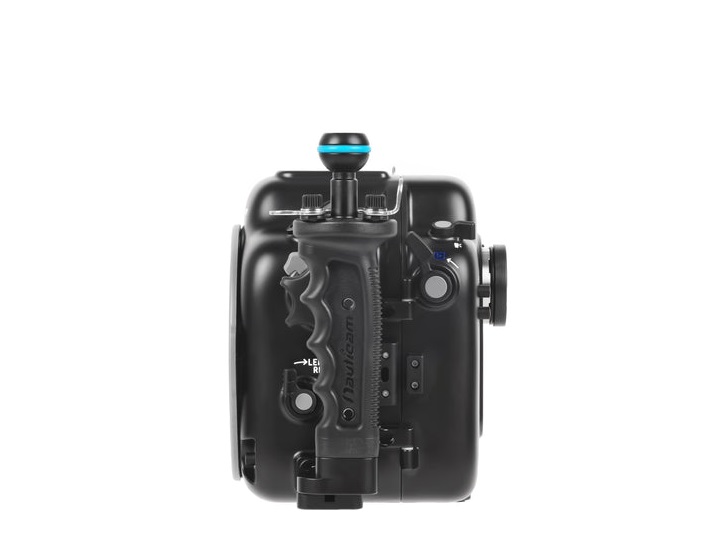

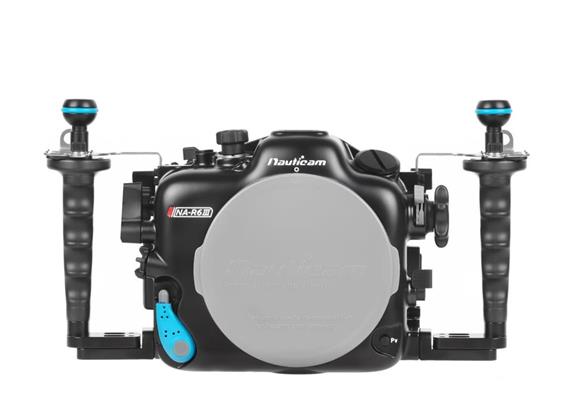

Nauticam underwater housing NA-R6III for Canon EOS R6III Camera (without port)

3,890.00 CHF / Pc.

incl. 8.1% Tax

Stock: 0

Art. no.: 17345

NumberPc.

Remember

Request for this article ›

Description

Nauticam NA-R6III Housing for Canon EOS R6III Camera (without port)

Specifications

Dimensions: 332mm (W) x 189mm (H) x 141mm (D)
Weight in air: TBD
Buoyancy in water: TBD
Depth Rating: 100m
Port System: N120 Canon RF-Mount II (for C50/R6III)
Port accessories: Front M24 x 1, Rear M16 x 1
Handles and stabilizing brackets: Pre-installed
HDMI support: HDMI 1.4 / 2.0
Compatible Cameras: Canon EOS R6III Camera

Compatible lenses

RF Lenses with RF Lens Gear System II (PN: 19630 ~ 19637)
EF Lenses with Canon mount adaptor EF to EOS R*

*Zoom/focus gear for EF lenses are MOD items

Canon Control Ring/Drop-in with V-ND Filter mount adaptor is unsupported

What’s in the box:

NA-R6III Housing
Housing Cap
2x Plugs for Optical fiber cable mount
2x Handles with mounting balls and 2x handle brackets
Panasonic CR-2032 Battery (pre-installed for moisture alarm)
Spare main O-ring, O-ring remover and lubricant
Set of Allen Keys
Padded housing bag and shoulder strap

Features

N120 Port Lock II with blue Lever (Support to install Extension/Port and lock automatically when the port lock lever is closed)
Rotary housing lock, same as NA-R6II
Dedicated RF mount Lens REL lever
Double Lever for M-Fn and REC on the front right side
AF-ON Lever on the rear right side, Playback Lever on the rear left side.
1x M10 threaded hole (mounting points for external monitor)
12x 1/4-20 threaded holes (for optional accessories)

Housing O-rings

90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)

Optical Trigger

26305 mini Flash trigger for Fujifilm/Canon
26321 TTL Flash Trigger for Canon

*26216 Universal Optical Fiber Cable is required.

Electrical Trigger

25017 M14 6 pin bulkhead for Canon system
25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only)
26326 M24-M16 Adaptor for use with 26325

Recommended Accessories

Housing Mount

17959 Housing Mounting ball with 1/4'' screws
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25218 Mounting ball set for tripod

Vacuum Valve

25625 M16 Vacuum Valve II (Pushbutton Release)

Lanyard

25413 27cm lanyard with 2 snap hooks

Viewfinder

32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
87213 Reverse Angled Viewfinder for EMWL(40°/ 0.8:1)
87214 Reverse Straight Viewfinder for EMWL (40°/ 0.8:1)
87215 Reverse Angled Viewfinder for EMWL(32°/ 1:1)
87216 Reverse Straight Viewfinder for EMWL (32°/ 1:1)

Surface USB-PD Power bank

26325 USB-C Bulkhead with USB-C Connector
26326 M24-M16 Adaptor for use with 26325

HDMI OUTPUT:

1) Required accessories for HDMI 2.0 Cable System

25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing) TBD

Compatible Monitor Options:

17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit - Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit - Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2) Required accessories for HDMI 1.4 Cable System

25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI
bulkhead to camera) TBD

*25033 is included in 17923 monitor housing

Compatible Monitor Options:

16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *is Required for use with 16611/16612
17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *includes 25033, 25038 and 25100
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) *25082 is Required for use with 17922 monitor housing

Required Monitor Mounting system

17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)

Wet Lenses

Macro

81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503 Mid-range Focus Optimizer 3

Wide Angle

83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
(incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85025 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable
Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible
28mm Lenses

Macro to Wideangle

86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens

87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)

87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)

87211 EMWL 150mm Relay Lens

87212 EMWL Angled Relay Lens

87221 EMWL 60° Objective Lens

87222 EMWL 100° Objective Lens

87223 EMWL 130° Objective Lens

87226 EMWL 160° Objective Lens

Optional Accessories for using with Wet Lenses

25101 M67 flip diopter holder for M67 macro ports
25108 M67 Double Flip Holder for M67 Macro Ports
83213 M67 to Bayonet Mount Converter II
83214 Bayonet Mount Adaptor for SMC/CMC
83250 M67 to Bayonet Mount Converter II
83251 M77 to Bayonet Mount Converter II
87501 Flip Holder for EMWL
87512 Shade for 130° Objective Lens
87513 Shade for 100° Objective Lens
87515 M67 Mount to EMWL Focusing Unit
87518 Strobe Mounting Brackets for EMWL Relay Lens

Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)

72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 37 0g)
72217 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
72220 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
72233 Single Bayonet Holder II for Ø70 Float Arm
72234 Double Bayonet Holder II for Ø70 Float Arm
72243 Single Bayonet Holder II for Ø90 Float Arm
72244 Double Bayonet Holder II for Ø90 Float Arm
83252 Bayonet Holder for Arms
83253 Double Bayonet Holder for Arms
83254 Bayonet Lens Holder for Inon Float Arms
87516 EMWL Bayonet Holder for Ø70 Float Arm
87517 EMWL Bayonet Holder for Ø90 Float Arm
