Nauticam Underwater Housing NA-L10 for Panasonic Lumix L10

1’690.00 CHF / Pc.

incl. 8.1% Tax

Stock: 0

Art. no.: 17723

NumberPc.

Remember

Request for this article ›

Description

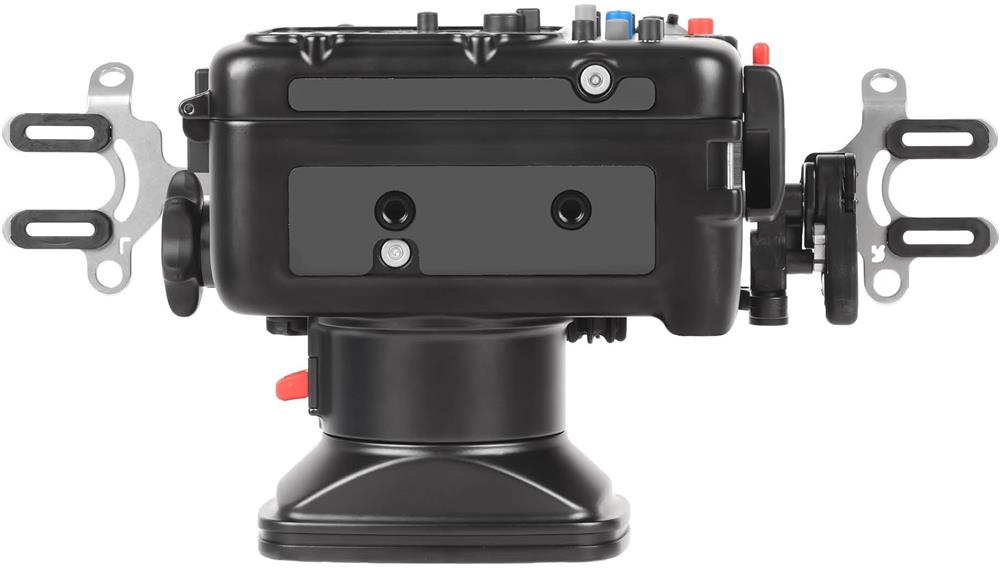

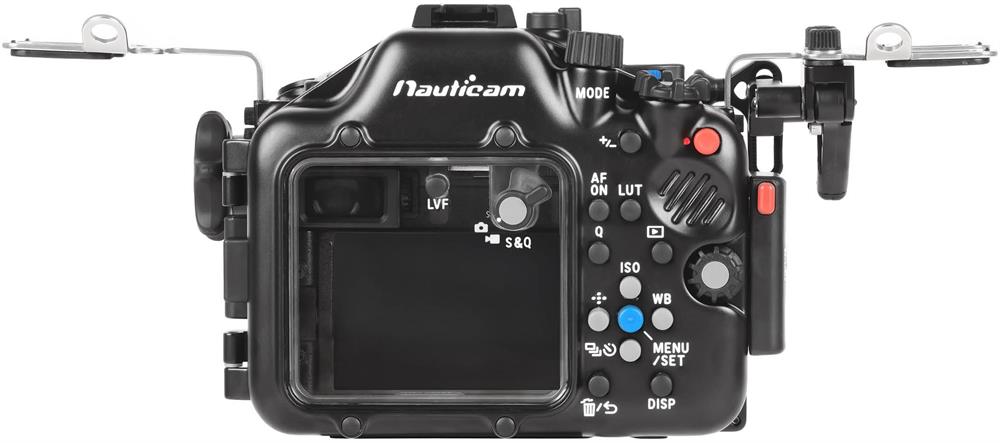

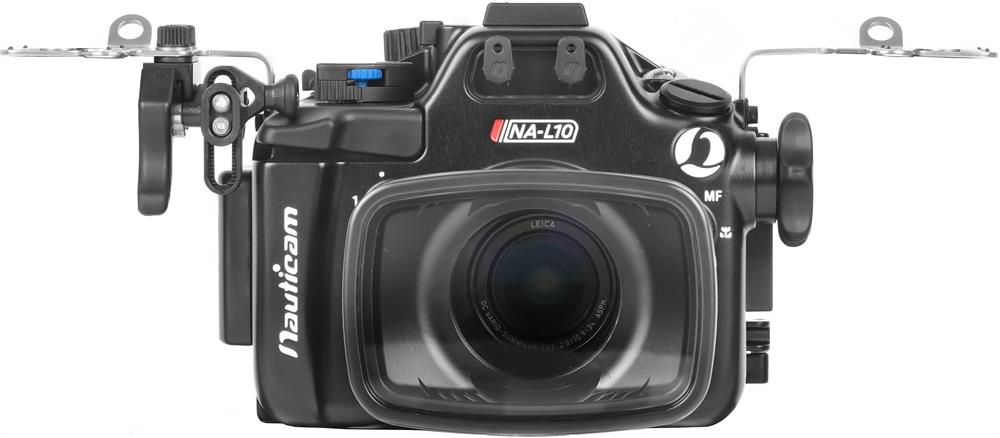

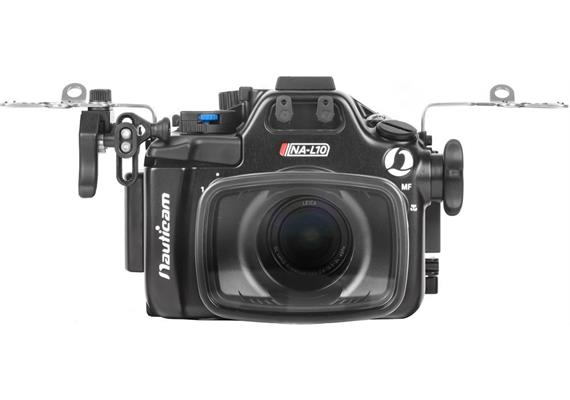

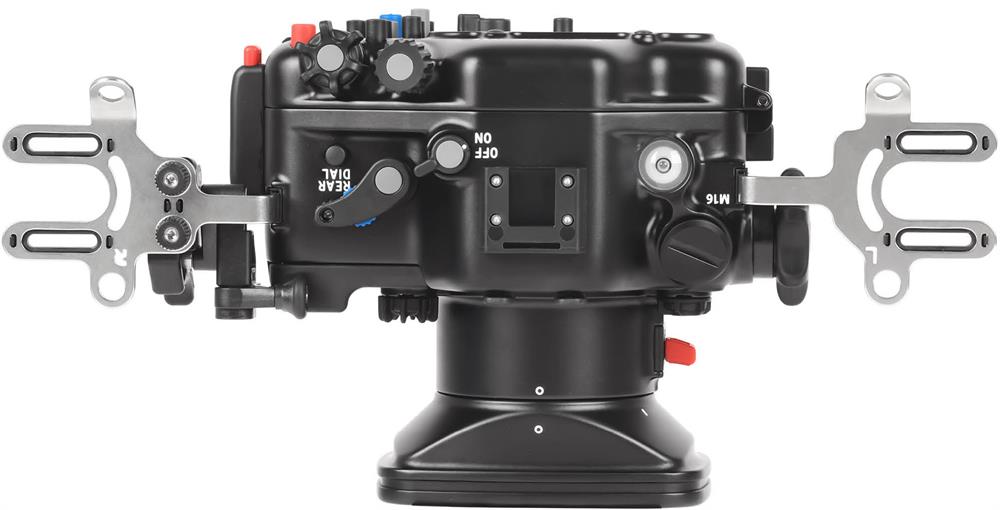

Nauticam Underwater Housing NA-L10 for Panasonic Lumix L10

The Nauticam NA-L10 Underwater Housing is specifically designed for the Panasonic Lumix L10, combining an ultra-compact form factor with professional ergonomics, exceptional reliability and a depth rating of 100 meters.

Featuring the proven N50 port system, an integrated vacuum check and moisture alarm system, and full compatibility with wet wide-angle and macro conversion optics, the NA-L10 is the ideal solution for demanding underwater photographers and videographers.

The housing supports both compact wide-angle solutions such as the WWL-C and WWL-1B, as well as advanced macro setups using the CMC-1, CMC-2 and MFO-1 Mid-range Focus Optimizer.

Key Features

Compact and durable aluminum underwater housing
Depth rating down to 100 meters
N50 port system for maximum flexibility
Integrated vacuum check and moisture alarm system
Optimized ergonomics with oversized zoom/focus knob
Dedicated dials for focus mode, exposure mode and aspect ratio
Rear-positioned REC button located close to the thumb area
Compatible with WWL-1B, WWL-C, CMC-1, CMC-2 and MFO-1 optics
Supports Nauticam Flexitray systems and optical accessories

Technical Specifications

Model	17723
Camera Compatibility	Panasonic Lumix L10
Dimensions	186 × 132 × 159 mm
Weight in Air	1.46 kg
Buoyancy in Water	Negative 0.22 kg (including camera and battery)
Depth Rating	100 m
Port Mount	N50
Accessory Ports	1x M16 front port

What’s Included

NA-L10 Housing with N50 Standard Port
2x plugs for optical fiber cable mounts
Panasonic CR-2032 battery (pre-installed for moisture alarm)
Spare O-ring (90131), lubricant and removal tool
Allen key set
Handle brackets and shutter release extension
Padded housing bag with shoulder strap

Compatible Accessories

25625 M16 Vacuum Valve II
26309 Mini Flash Trigger
26216 Universal Optical Fiber Cable
25133 LCD Magnifier Attachment Rails
25106 LCD Magnifier with dioptric adjustment
25311 Strobe mounting ball for cold shoe
25312 Light mounting stem for cold shoe
38702 N50 3.5" Dome Port
WWL-1B and WWL-C wet wide-angle lenses
CMC-1 / CMC-2 compact macro converters
MFO-1 Mid-range Focus Optimizer

N50 Port System & Wet Lens Compatibility

The NA-L10 supports the highly versatile N50 port system, allowing the use of premium wet lenses and dome ports for a wide variety of underwater imaging applications.

WWL-1B: Up to 130° field of view
WWL-C: Compact 130° wide-angle solution
CMC-1: Extreme macro magnification
CMC-2: Enhanced macro photography
MFO-1: Optimized close-focus performance

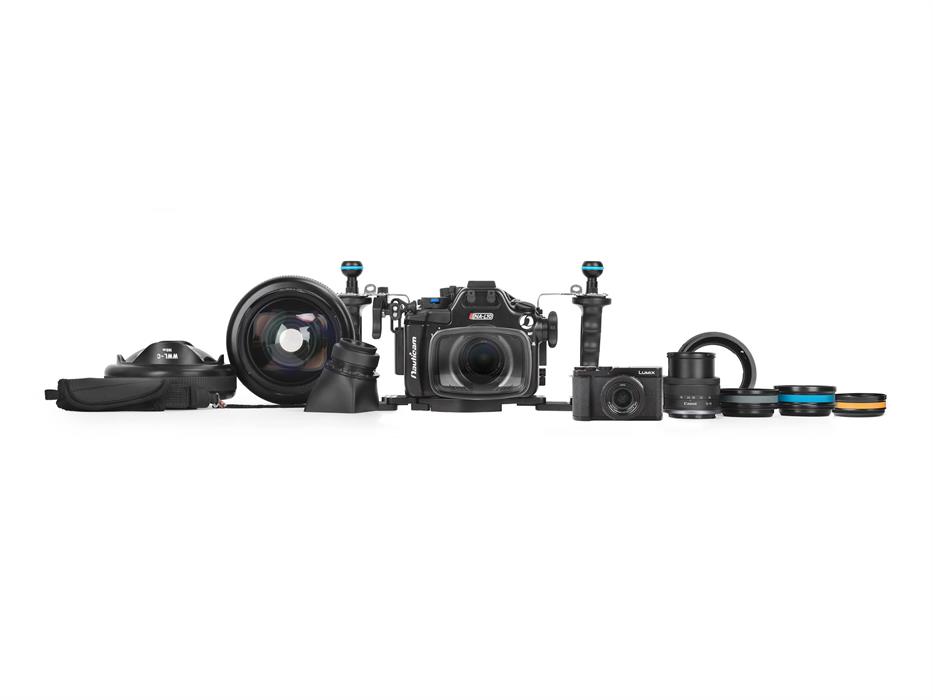

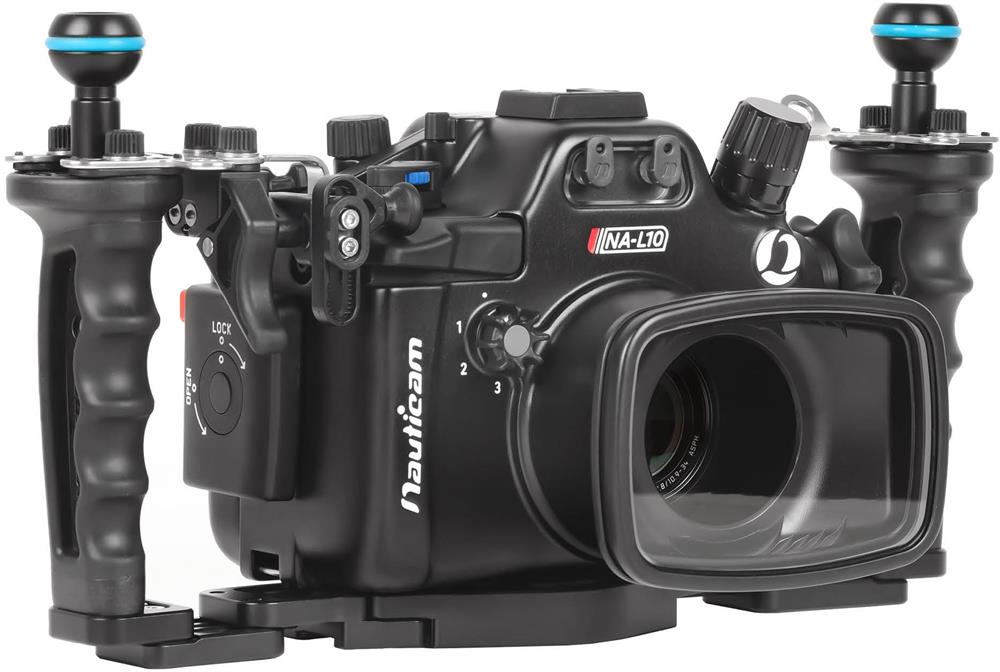

17723P – NA-L10 Pro Package

The optional NA-L10 Pro Package additionally includes:

Flexitray system
Right handle
Two mounting balls
M16 vacuum valve
Shutter release extension

Model	17723P
Dimensions	310 × 171 × 159 mm
Weight in Air	2.12 kg
Buoyancy in Water	Negative 0.64 kg
Depth Rating	100 m

Conclusion

The Nauticam NA-L10 provides a professional yet compact underwater solution for the Panasonic Lumix L10. Combining ergonomic operation, modular expandability and support for advanced wet lens systems, the housing is perfectly suited for high-end underwater photography and underwater video production.

Nauticam NA-L10 Underwater Housing for Panasonic Lumix L10 | 100m Aluminum Housing
