Nauticam NA-Z5II Underwater Housing for Nikon Z5II Camera (without port)

2 990,00 CHF / Pc.

incl. 8,1% Tax

Stock: 0

Art. no.: 17232

NumberPc.

Remember

Request for this article ›

Description

Nauticam NA-Z5II Underwater Housing for Nikon Z5II Camera (without port)

Nikon has significantly improved the performance of the Z5II with enhanced processing speed, improved subject recognition and autofocus, and improved low-light performance. Equipped with a 24.5-megapixel sensor, two SD card slots, and comprehensive video recording capabilities, the Nikon Z5II allows users to increase their creativity underwater. Combined with the NA-Z5II underwater housing, it offers a comprehensive solution for capturing exceptional underwater images. The ergonomic body design optimizes the layout of key controls, positioning them on the left and right grips for intuitive and efficient adjustments during shooting.

Technical specifications

Dimensions: 340 mm (W) x 200 mm (H) x 127 mm (D)
Weight in air: TBA
Buoyancy in water: TBA (including camera and battery)
Depth rating: 100 m
Connection: N120

INTRODUCING THE NA-Z5II Nikon Z5II Camera

The Nikon Z5II is an evolution of its predecessor and impresses with improved processing speed, subject recognition autofocus, and exceptional performance in low light conditions. Equipped with a full-frame FX-format 24.5 MP BSI CMOS sensor and an EXPEED 7 image processor, the Z5II delivers remarkable image quality.

Der AI-driven autofocus, derived from the Z9 and enhanced with deep learning technology, now uses sophisticated subject recognition for nine different subject types. This ensures precise focusing and tracking, even in difficult lighting conditions.

The EXPEED 7 processor also enables pre-release, a feature that shoots at an impressive 30 frames per second up to one second before the shutter is released. This allows photographers to capture the decisive moment with precision and avoid missed shots.

In addition to its impressive imaging capabilities, the Z5II has been optimized for exceptional video recording. It supports UHD 4K video recording at up to 60 frames per second and Full HD recording at up to 120 frames per second, allowing videographers to capture dynamic and impressive footage.

Key features

24.5 MP full-frame BSI CMOS sensor
EXPEED 7 image processor
N-RAW (12-bit), H.265/HEVC (8-bit/10-bit), H.264/AVC (8-bit)
Full HD 120p for slow-motion videos
Up to 30 frames per second in JPEG format
Best-in-class autofocus with sensitivity down to -10 EV
Automatic detection of 9 subjects
7.5 stops of integrated image stabilization
2 SD memory card slots

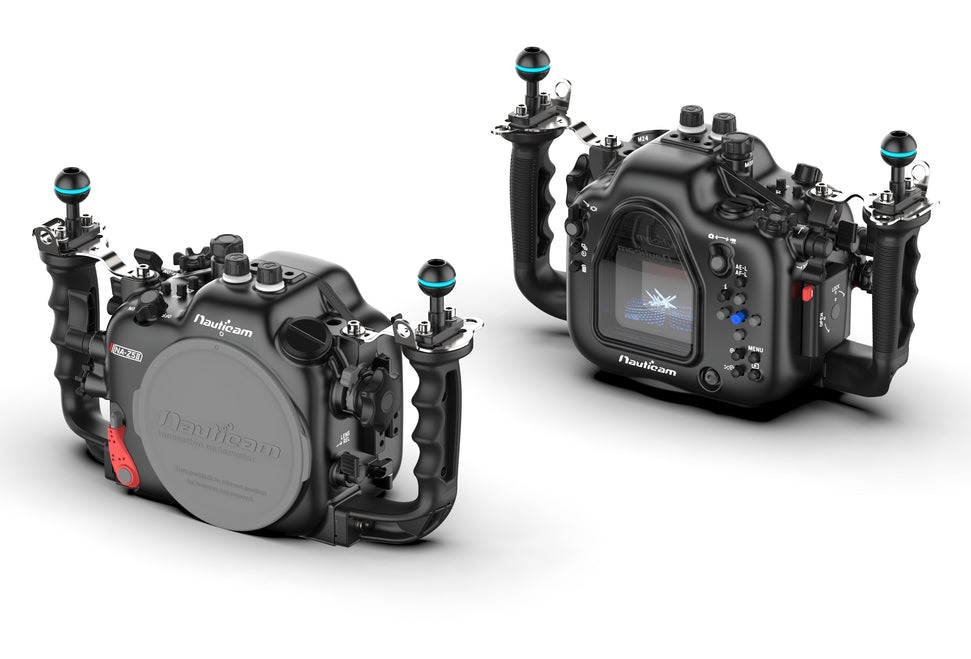

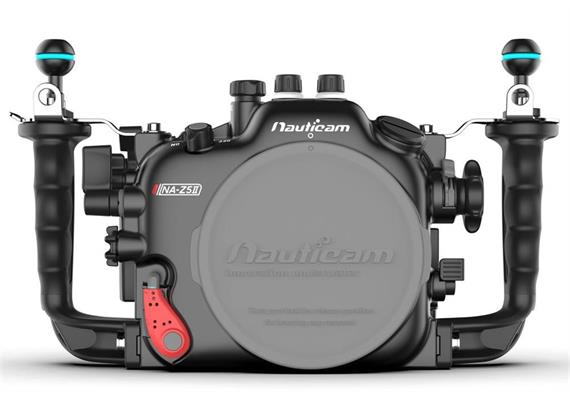

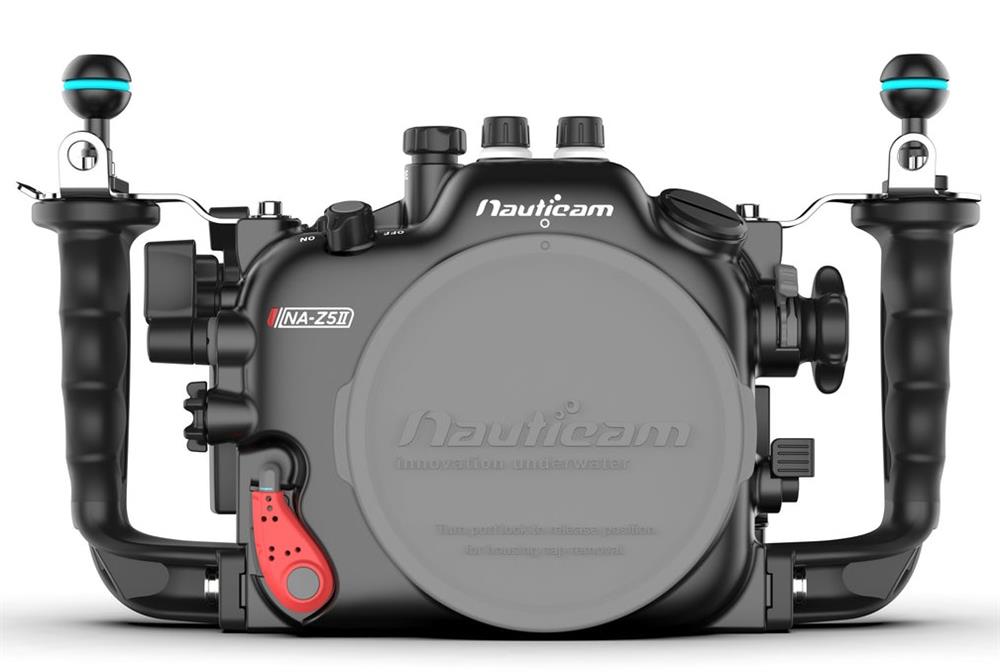

NA-Z5II Housing

The NA-Z5II underwater housing underscores Nauticam's commitment to innovation. The most important controls are conveniently accessible via ergonomic handles, enabling efficient setup that optimizes time in the water and minimizes equipment maintenance. The N120 lens mount system is compatible with both Nikon Z-mount and older F-mount lenses via the FTZ/FTZ II adapter. Nauticam's extensive range of lens mounts and correction optics complements the capabilities of the NA-Z5II. In conjunction with an optional vacuum valve, the integrated vacuum control and leak detection system continuously monitors the watertightness of the housing. A vacuum system reset switch below the bracket eliminates the need to open the housing back when changing lenses or ports. The optional NA-Z5II LCD window for full-frame viewfinders allows the use of Nauticam full-frame viewfinders for improved visibility. The NA-Z5II supports additional mounting with 1/4-20, M10, and M5 threaded holes on the top for monitors and lighting, while the bottom can accommodate the 25218 tripod ball mount kit. The NA-Z5II can be customized to your specific shooting requirements.

Support for Nikon F-mount and Z-mount lenses

The Nauticam NA-Z5II is designed for Z-mount and F-mount lenses. With the new compact design of the NA-Z5II housing, there are newly developed zoom and focus gears that drive the main zoom/focus knob on the housing. In addition, the 22225 N120 FTZ Adapter ER 25 with button is available, allowing you to use previous-generation zoom and focus gears for the Z-mount together with F-mount lenses and the corresponding gears. For detailed compatibility information, please refer to the NA-Z6III/Z5II Port Table.

Premium professional optics

Nauticam's professional underwater optics deliver the highest image quality underwater. The FCP, WACP, and WWL series enhance wide-angle optics, while the MFO and SMC series offer exceptional macro and super macro capabilities. With the EMWL, you can shoot macro and wide-angle or combine both styles for unique images.

Mission Control

In typical Nauticam fashion, all important controls are located as close to the handles as possible, making these housings among the most intuitive and user-friendly on the market. Our engineers have strategically placed controls where they are most needed, not simply near the corresponding buttons on the camera. The adjustment dials feature rubberized finger grooves and the levers are designed for smooth operation.

Integrated vacuum check and leak detection

The Nauticam vacuum check and leak detection system is supplied as standard with the NA-Z5II. In combination with an additional vacuum valve (PN 25625), this monitoring system provides constant information about the watertightness and diveability of the housing. A simple color-coded LED lighting system indicates to the user whether the vacuum is stable or whether the housing is losing vacuum. Leak detection is integrated into the same circuit, so that an audible and visual indication is given if water enters. The Nauticam system is temperature-compensated, which prevents false alarms due to external temperature fluctuations or heating of the camera during action-packed dives.

Flash triggering

The Nikon Z5Il flash in the NA-Z5II can be triggered either optically or electrically.

Optical triggering

26350 Flash trigger for Nikon (compatible with NA-D5/D500/D850)
26352 Manual flash trigger for Nikon II (for Z6III)
26601 HSS TTL converter for Nikon (NA-Z8/Z9/Z6III)

Electrical trigger

25013 M14 Nikonos 5-pin connector with hot shoe and 26326 M24-M16 adapter

In the box included

NA-Z5II housing
N120 port cap
2x optical feed-through seals
2x handles with mounting balls and 2x handle mounts
Pre-installed leak detection and moisture alarm with CR-2032 battery
Spare O-ring for the main housing, O-ring remover and Nauticam grease
Set of Allen keys
Operating instructions
Padded case and shoulder strap

Recommended accessories

25218 Ball joint set for tripod (for NA-A9/A7RIII/BMPCC/XT3)
25221 M10 flash ball joint for housing
25224 M10 flash ball joint for housing (with hole for lanyard)
25228 M5 flash mount ball for housing
25625 M16 vacuum valve II (push button release)
28130 Hand strap for 28113
28123 Pair of handles – size S (10 mm closer to the housing)
25413 27 cm lanyard with 2 snap hooks
NA-Z5II LCD window for Nauticam full-frame viewfinder
32212 Nauticam full-frame viewfinder 40 / 0.8:1
32214 Nauticam full-frame angle viewfinder 40 / 0.8:1
87213 Reverse viewfinder for EMWL 40 / 0.8:1
87214 Reverse viewfinder for EMWL 40 / 0.8:1

Surface USB PD Power Bank

26325 USB-C connector with USB-C plug
26326 M24-M16 adapter for use with 26325

HDMI output

Required accessories for HDMI 1.4 cable system

25033 Standard HDMI connector with M16 thread
26326 M24-M16 adapter for use with 26325 *instead of the existing 25081
25076 HDMI (D-D) cable, 200 mm long, for NA-XT2/XH1/A6400 (for internal connection from the HDMI port to the camera)

Compatible monitor options

16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, without cable) 25047 HDMI (D-D) cable, 800 mm long (for connection between HDMI screw connections) *25047 is required for use with the 16612 monitor housing
17927 NA-Shinobi II housing for Atomos Shinobi II 5.2-inch monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100
17922 Nauticam Atomos Ninja V housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (without HDMI 2.0 cable)
25082 HDMI 1.4 cable for Ninja V housing, 0.75 m long (for connecting the Ninja V housing to the HDMI feed-through)

*25082 is required for use with monitor 17922.

Monitor/tripod mounting system

17951 Nauticam Atomos Shogun housing mounting system
17952 Nauticam monitor housing mounting adapter
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra Pod Plate for Nauticam housings
17961 Tilt and swivel monitor mounting system (compatible with 16612/17927/17922 etc.)
25218 Ball joint kit for tripod (for NA-A9/A7RIII/BMPCC/XT3)

WET LENSES

Macro

81202 Super Macro Converter 2 (4x magnification)
81203 Super Macro Converter 3 (2.3x magnification)
81301 Compact Macro Converter 1 (CMC-1, 4.5x magnification)
81302 Compact Macro Converter 2 (CMC-2, 2.8x magnification)
81501 Focus optimizer for medium distances 1
81503 Focus optimizer for medium distances 3

Wide angle

83202 Wet wide-angle lens 1B (WWL-1B) 130° field of view with compatible 28 mm lenses (incl. floating ring)
83203 Compact wet wide-angle lens (WWL-C) 130° field of view with compatible 24 mm lenses (including floating ring)
85204 Wide-angle conversion port – 2 (WACP-2) 140° image field with compatible 14 mm lenses (including floating ring)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with integrated float ring and interchangeable port mounting ring – (WACP-1B)
85207 N120/N100 fisheye conversion port with integrated floating ring (FCP) 170° field of view with compatible 28 mm lenses

Macro to wide angle

87302 EMWL Set No. 2 (incl. focusing unit No. 2, 150 mm relay lens and 3 lens elements)
87202 EMWL Focusing Unit No. 2 (for Canon FF 100 mm and APS-C 60 mm)
87211 EMWL 150 mm Relay Lens
87212 EMWL Angled Relay Lens
87221 EMWL 60° lens
87222 EMWL 100° lens
87223 EMWL 130° lens
87226 EMWL 160° lens

Accessories for wet lenses

25101 M67 folding diopter holder for M67 macro ports
25108 M67 double folding holder for M67 macro ports
83250 M67 bayonet converter II
83214 Bayonet adapter for SMC/CMC
87501 Folding holder for EMWL
87512 Aperture for 130° lens
87513 Aperture for 100° lens
87519 Aperture for 160° lens
87518 Flash brackets for EMWL relay lens
