AOI UH-A7RV Underwater Housing for Sony A7RV (without Port)

1’299.90 CHF / Pc.

incl. 8.1% Tax

Stock: 0

Art. no.: UH-A7RV

NumberPc.

Remember

Request for this article ›

Description

AOI UH-A7RV Underwater Housing for Sony A7R V – 60 m Depth, Vacuum System, TTL Flash Control

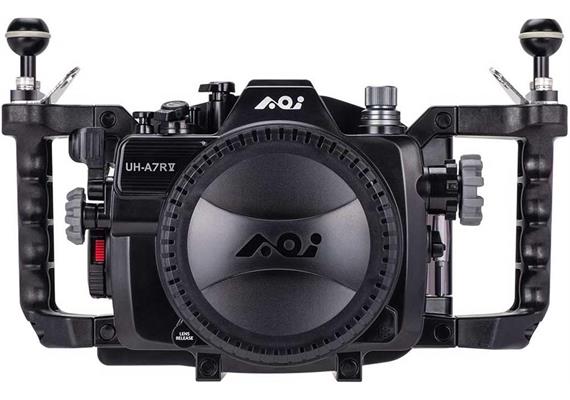

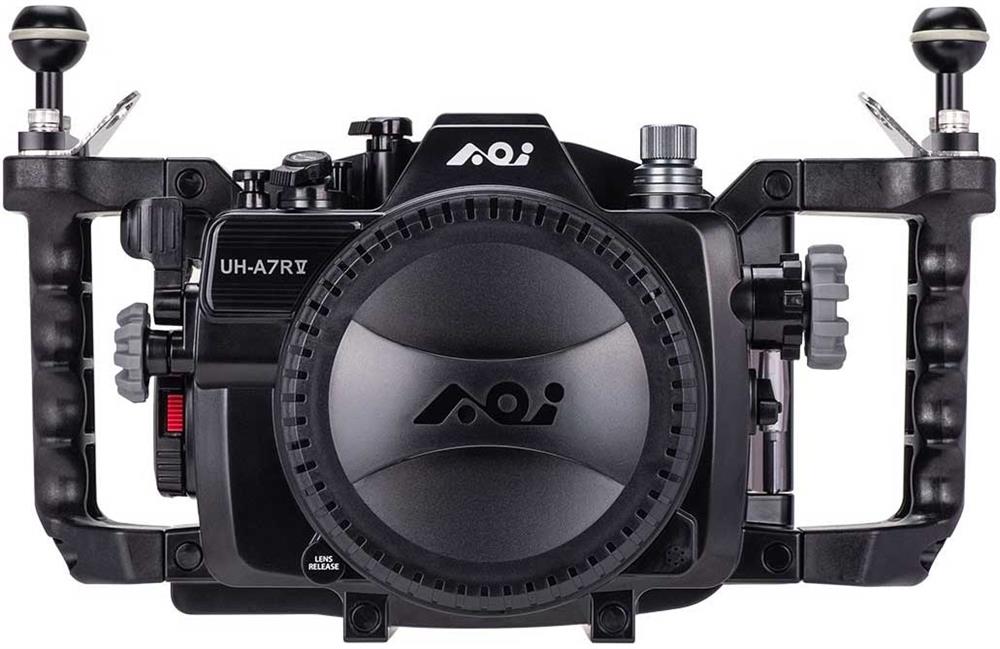

AOI UH-A7RV Underwater Housing for Sony A7R V

Robust. Smart. Versatile.

The AOI UH-A7RV is a high-end housing made from PC+GF, specifically designed for the Sony A7R V (ILCE-7RM5). Ideal for ambitious underwater photographers who demand maximum control and reliability down to 60 meters.

Highlights & Features

Model: UH-A7RV for Sony ILCE-7RM5 (A7R V)
Material: High-quality PC+GF (glass fiber reinforced polycarbonate)
Depth rating: 60 m with integrated depth alarm
Port system: AOI AX Port System – modular and expandable
Flash control: Sony TTL, M-HSS, and manual (no pre-flash)
Leak protection & monitoring: Integrated vacuum analysis system (VWS), leak and depth alarm
Power supply: Built-in 3.7 V/700 mAh Li-Poly battery, USB-C charging port, approx. 1.5 h charge time, up to 18 h operation
Dimensions & weight: 321.5 × 130.4 × 203.5 mm, 2,981 g on land; in water –190 g (with A7R V, 28–60 mm, port, and HSC-03)

Technical Specifications

Feature	Value
Model Number	UH-A7RV
Housing Material	PC+GF
Color	Black
Compatible Camera	Sony ILCE-7RM5 (A7R V)
Maximum Depth	60 m
Port System	AOI AX Port System
Flash Control	Sony-TTL, M-HSS, manual (no pre-flash)
Leak Protection System	Vacuum analysis, leak and depth alarm
Battery	Li-Poly 3.7 V/700 mAh, USB-C charging, 18 h runtime
Dimensions (L×W×H)	321.5 × 130.4 × 203.5 mm
Weight on Land	2,981 g
Weight in Water	–190 g (with standard setup)

Included in the Box

AOI UH-A7RV housing
Body Cap (AOI BC-101) & Hot-Shoe Connector (HSC-03)
Camera Tray-02 (CTR-02)
Spare O-rings & O-ring tool
LCD hood (LCDH-01)
Vacuum hand pump (VP-03) + silicone grease (SIGR-5)
Silica gel desiccant (SIGE-3)
Ball mount base (BM-01-BLK), USB-C cable (USBC-02)
Extended shutter lever, hex key, cleaning cloth

Why Choose the AOI UH-A7RV?

Secure up to 60 meters: No dive is a risk thanks to integrated alarms.
Flexible flash control: Full creative control with TTL, M-HSS, or manual modes.
Smart vacuum system: Automated leak detection protects your gear.
Modular design: AX Ports allow custom configurations (ports, fiber optics, etc.).
Durable & lightweight: Sturdy housing that's relatively light for its size.
