AOI Beam Reduction Ring for UIS-P1
100.00
CHF
/ Pc.
incl. 8.1% Tax
Stock:
0
Art. no.: RDR-01
Remember
Description
AOI · Accessory for UIS-P1

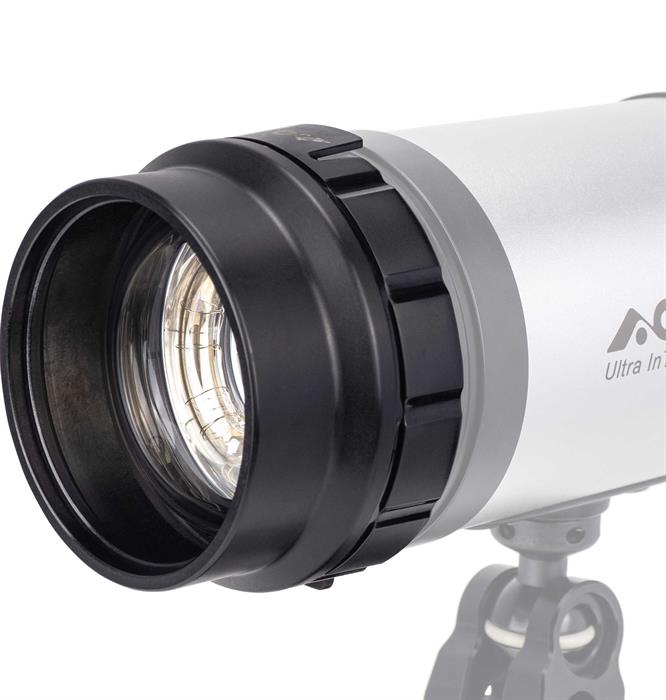

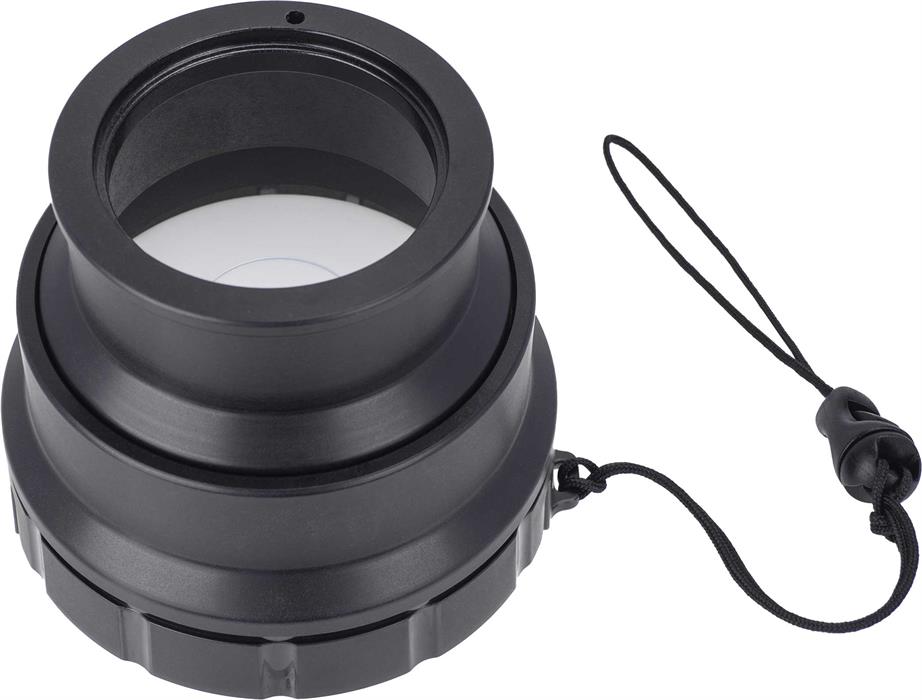

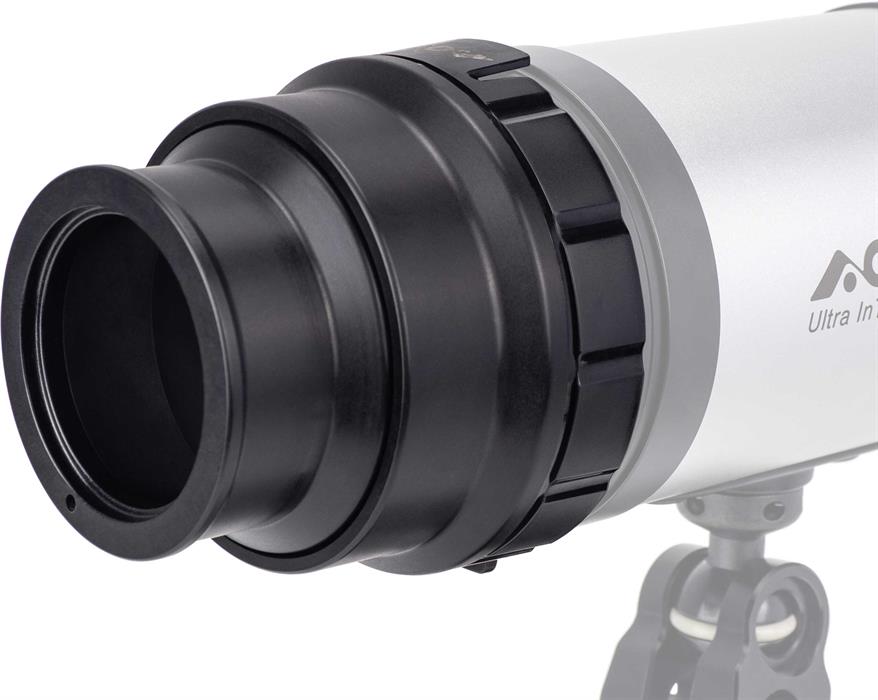

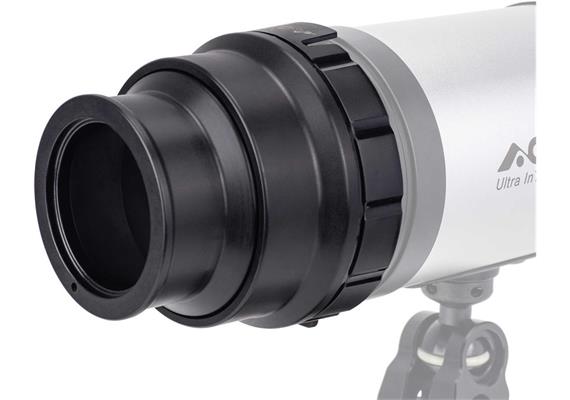

AOI RDR-01 – Beam Reduction Ring for AOI UIS-P1
Set of diffuser and two combinable reduction rings to narrow the beam. Reduces stray light and backscatter – ideal for macro and low-visibility diving. Adjustable beam angle from 150° down to 80° or 50°.
Highlights
Targeted lighting
Narrows AOI UIS-P1 beam for precise macro shots.
Less backscatter
Clearer images in murky or particle-rich water.
Flexible rings
Use separately or combined (150°->80°/50°).
Diffuser included
Softer, even light with natural colors.
Technical Data
| Model | AOI RDR-01 |
|---|---|
| Description | Beam Reduction Ring for AOI UIS-P1 |
| Material | PC, PC+GF |
| Dimensions | 96 × 90 × 83 mm |
| Weight | 119.7 g |
| Accessories | 2 × lanyards |
| Beam angle Ø48 mm | 150° -> 50° |
| Beam angle Ø70 mm | 150° ? 80° |

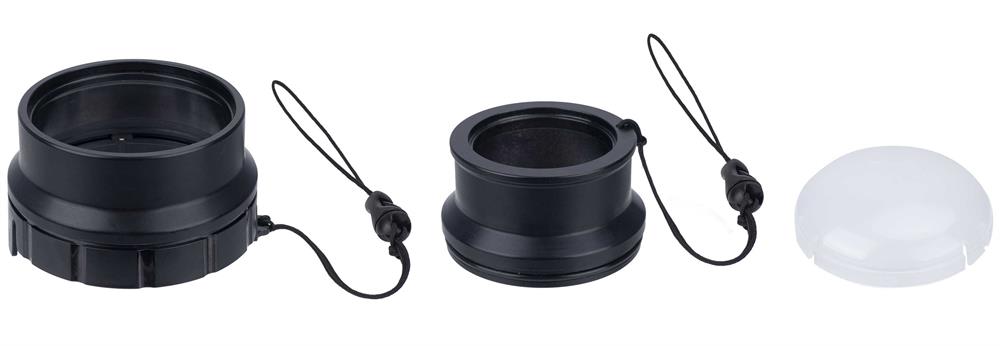

| Set contents | 1 × diffuser, 2 × reduction rings |
| Compatibility | AOI UIS-P1 Strobe |
Usage Tips
For clean macro shots:
- Ring Ø70 mm: reduces to ~80°, cuts stray light.
- Ring Ø48 mm: ideal macro – ~50° for precision.

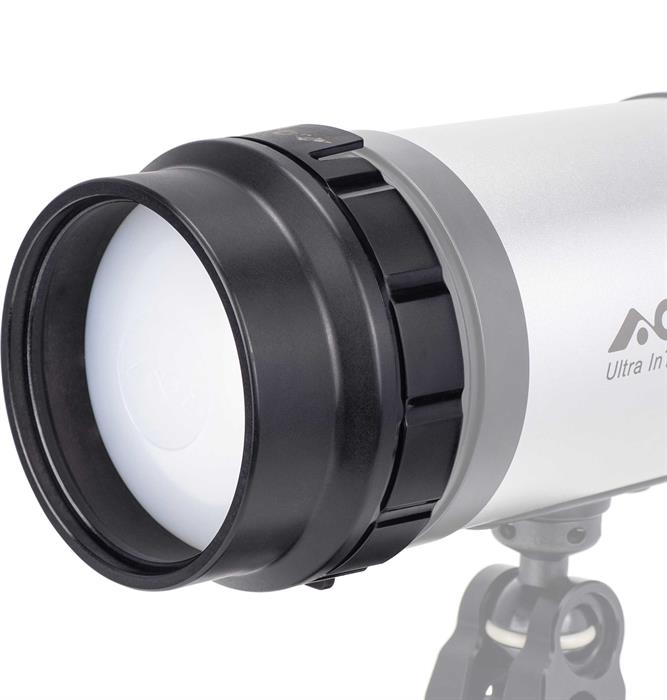

- Diffuser: softer light, perfect for reflective subjects.
