Ikelite 200DLM/D UW-Housing for Canon EOS R10 Deluxe Version with Handles/Vacuum

Ikelite 200DLM/D Underwater Housing for Canon EOS R10 Deluxe Version with Handles and Vacuum System (without Port)

We've set up the Deluxe 200DLM Underwater Housing for Canon EOS R10 exactly the way we would use it with Dual Tray with Dual Handles, Trigger Extensions, Vacuum System, and a set of spare O-Rings.

Never before have we been so excited for a compact mirrorless camera. The combination of size, imaging quality, and value of the Canon EOS R10 system is unparalleled.

This is a full featured and durable waterproof housing for Canon EOS R10 mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.

The included Vacuum System allows you to check for leaks prior to entering the water.

Technical Data

• Controls: Controls are provided for everything except Diopter Adjustment Slider, Multi-Controller (can be pressed straight in), Depth-of-Field Preview Button, Focus Mode Switch
• Strobe Connector: Ikelite Bulkhead with Manual Hotshoe
• Port Mount: DLM (Dry Lock Micro)
• Accessory Port: 1/2-20 Thread
• Depth Rating: 200 feet (60 meters)
• Weight: 1,36kg (3 lb)
• Dimensions: 7.5 x 5.9 x 6 in (191 x 150 x 152 mm)
• Rear O-Ring: 0110
• Front O-Ring: 0132.36

Pro Check-Dive

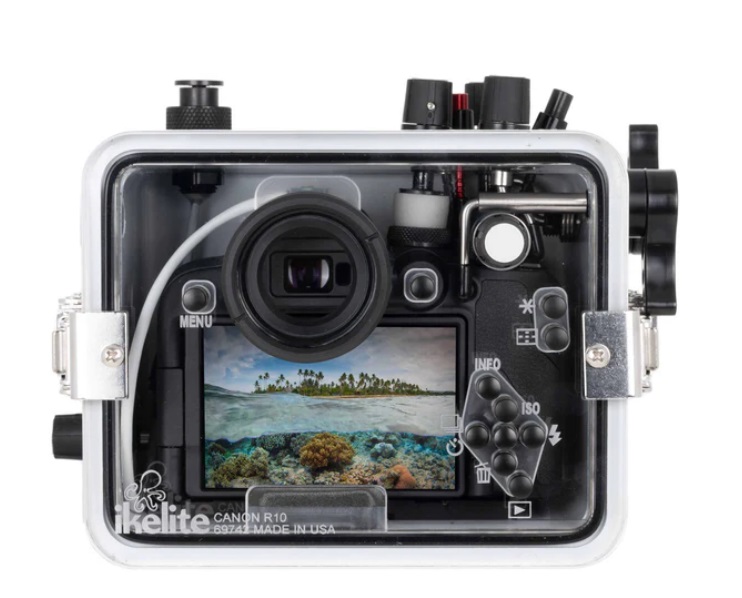

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks prior to entering the water.

Construction

Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens support

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.

WI-FI Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

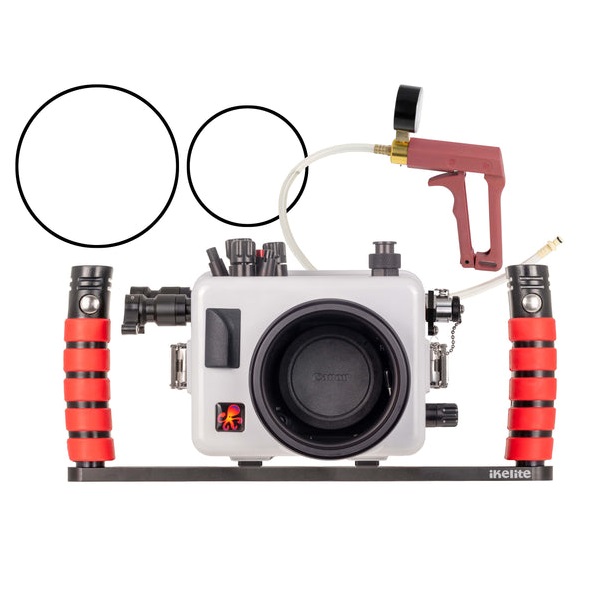

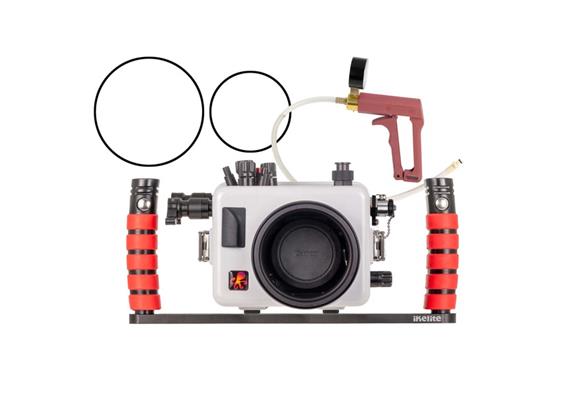

In the box

• Housing
• Rear O-Ring # 0110 (installed + spare)
• Front O-Ring # 0132.36 (installed + spare)
• Waterproof bulkhead cap # 9104.7 (installed)
• (2) Trigger Extensions # 4077.95 (installed)
• Vacuum valve (installed)
• Vacuum pump with gauge # 47011
• Tray with dual handles # 9523.64
• Silicone lubricant 1cc tube
