Ikelite 200DL Underwater Housing Deluxe Version for Sony a1 MII camera (without port)

Ikelite 200DL Underwater Housing Deluxe Version for Sony a1 II Camera: with Handles, Vacuum Pump & USB-C Charging Bulkhead (without port)

A full featured and durable waterproof housing for the Sony Alpha 1 Mark II full frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. The Ikelite system can be expanded for any shooting needs including the addition of an optional M24 accessory port for an HDMI 2.0 external monitor.

Lens Port required (sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

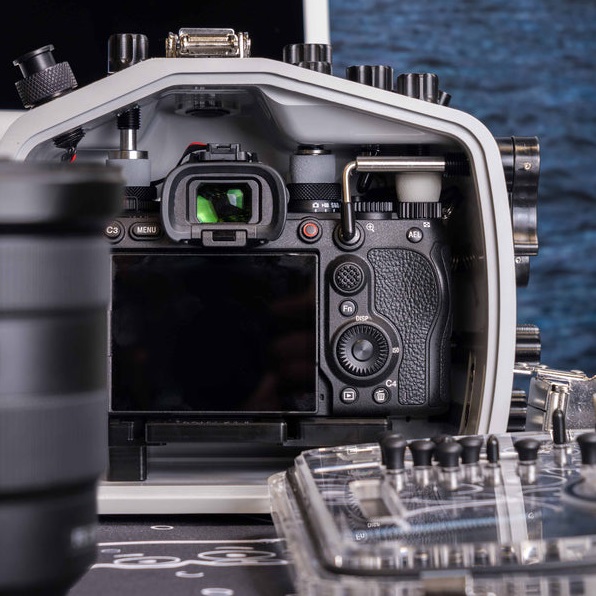

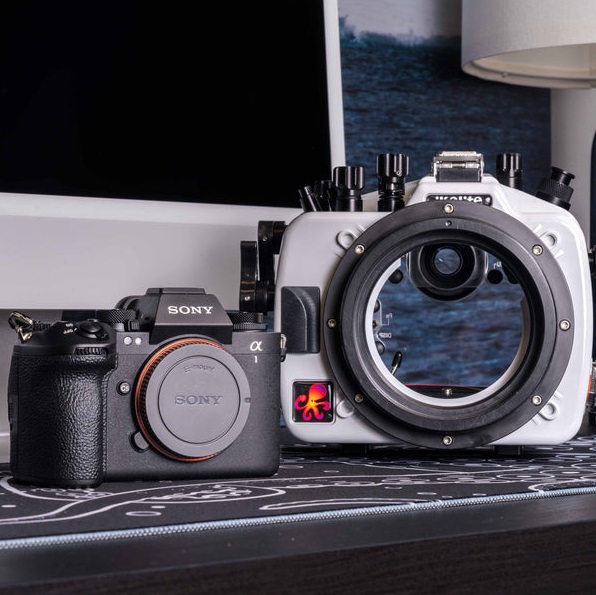

Take full control over this powerful Sony full frame camera in one lightweight and durable underwater housing

No other manufacturer makes professional functionality so accessible. The Ikelite housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed.

The DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for these housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.

Technical Data

• Controls are provided for all camera functions except: Diopter adjustment, Focus mode dial; Joystick up/down/left/right (Joystick can be depressed), Control wheel; Control wheel functions may be accessed using the Front and Rear Dials

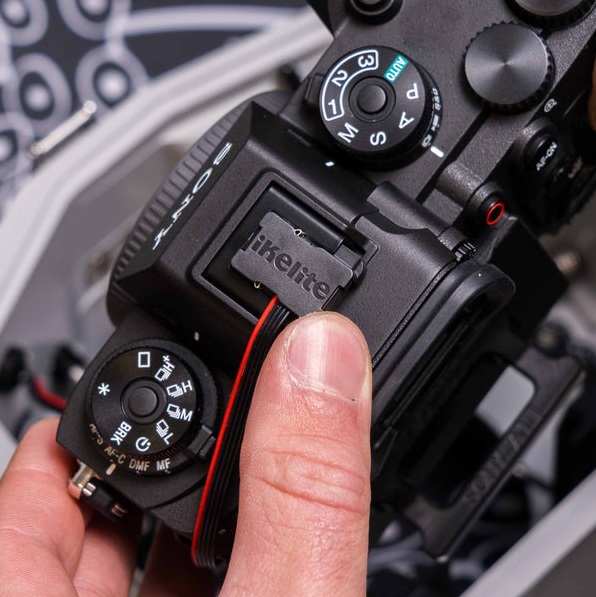

• Strobe Connector: Ikelite Bulkhead with Manual Hotshoe
• Port Mount: DL (Dry Lock)
• Accessory Port: M16 Thread
• Depth Rating: 200 feet (60 meters)
• Rear O-Ring: 0132.59
• Front O-Ring: 0132.45

Pre-Dive Checks

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. The signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend using a pump with gauge to pull a vacuum on the housing and check for leaks prior to entering the water.

Construction

The specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens support

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

Ikelite support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using. Lens ports and zoom gears sold separately.

WI-FI-Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing.

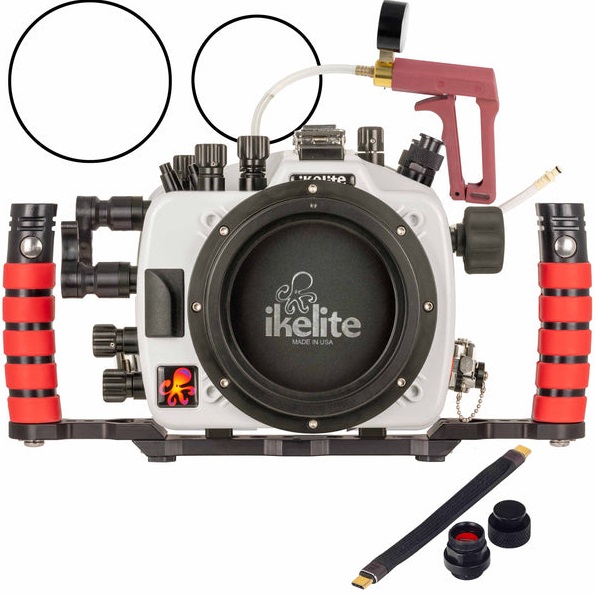

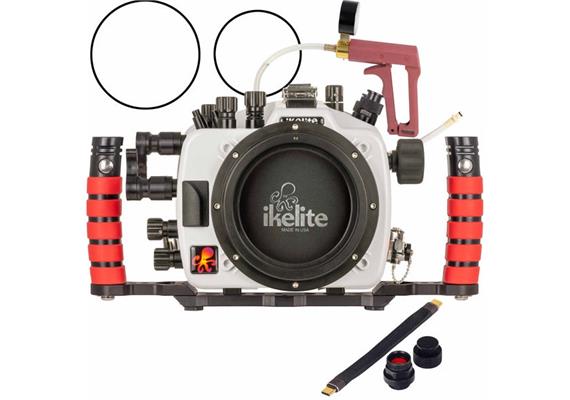

In the box

• 200DL Housing # 71483
• Right Quick Release Handle # 4077.02 (installed)
• (2) Trigger Extensions # 4077.95 (installed)
• USB-C Charging & Data Transfer Bulkhead # 46007 (installed)
• Vacuum Pump with Gauge # 47011
• Spare Rear O-ring # 0132.59
• Spare Front O-ring # 0132.45
