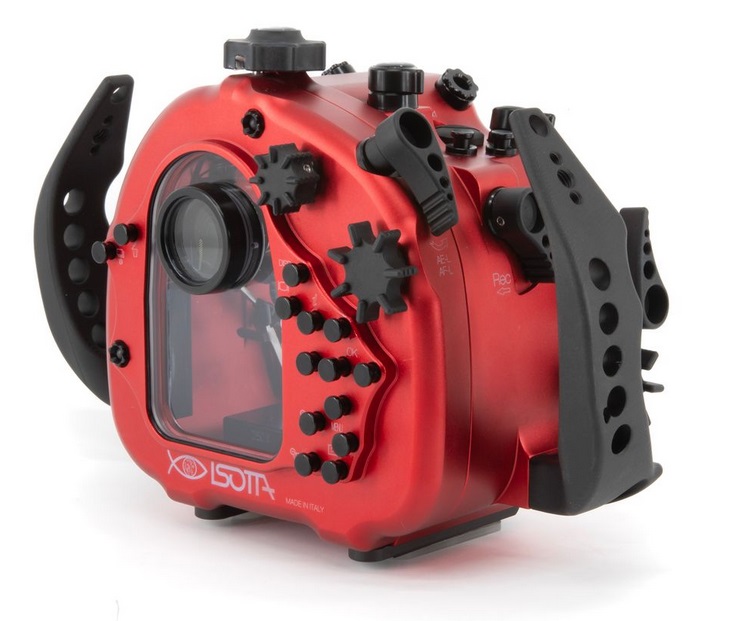

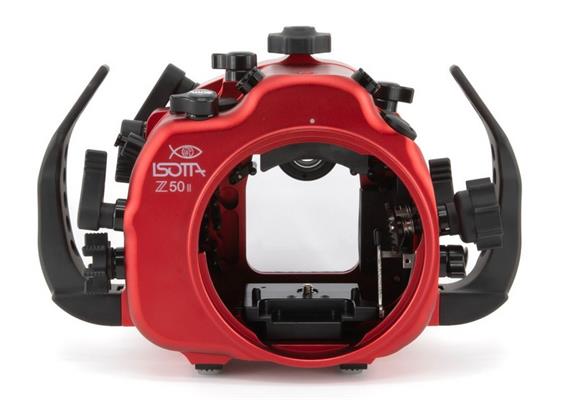

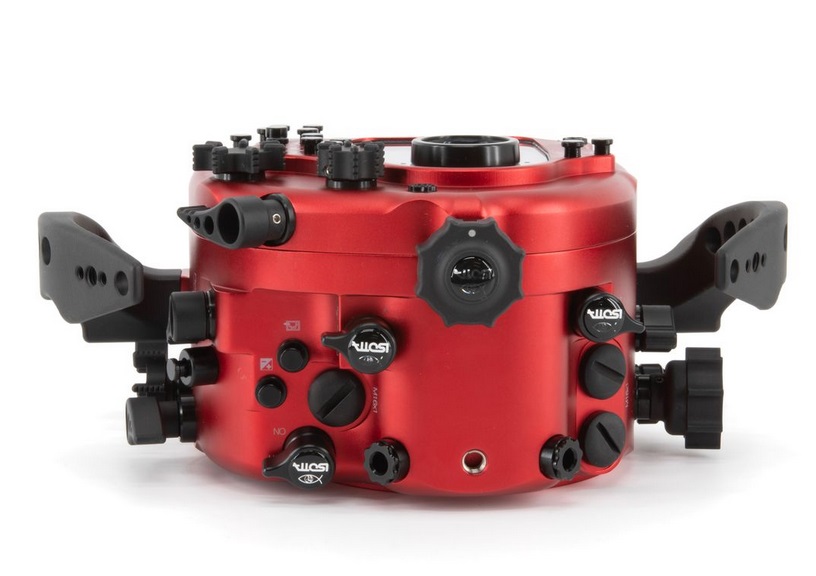

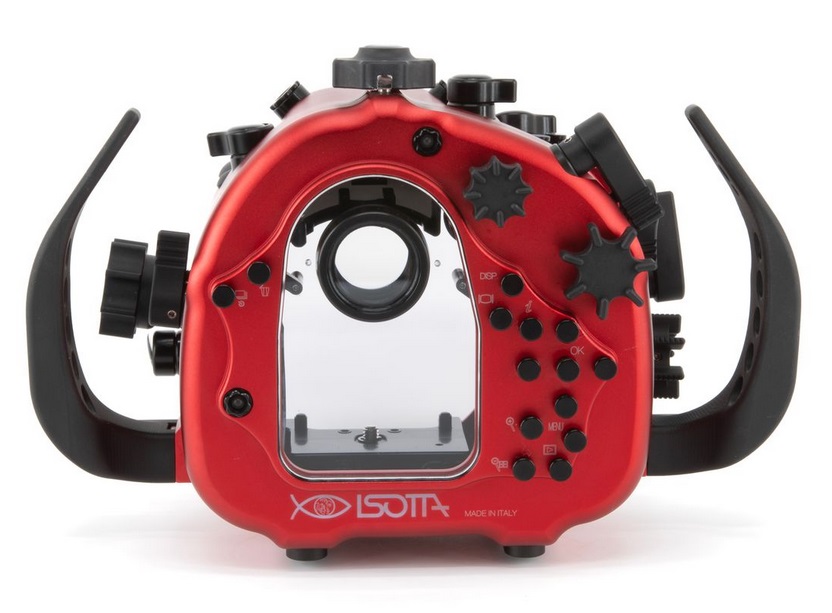

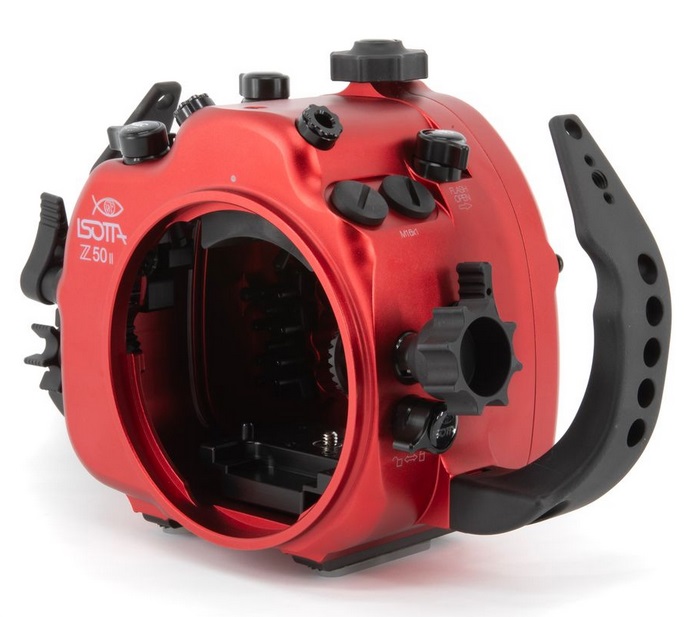

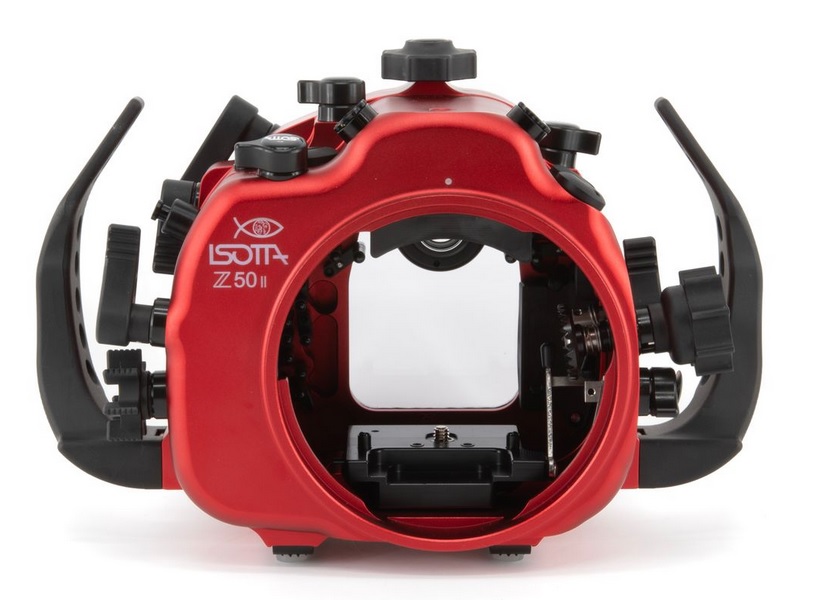

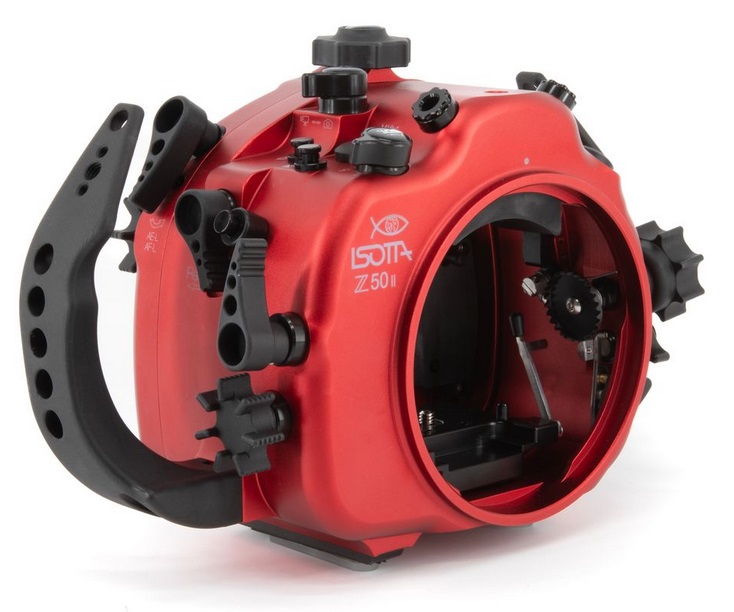

Isotta Underwater Housing Z50II for Nikon Z50II camera (without port)

Isotta Underwater HOUSING FOR NIKON Z 50II (without Port)

Technical Data

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard (to use the flash needs an optional trigger)
• Three M16 holes for using accessories such as vacuum systems, Nikonos or S6 bulkhead
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Standard ISOTTA viewfinder
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port B120 bayonet
• Safety lock on the porthole to prevent accidental opening
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• M8 hole located on upper side of the housing for various accessories such as focus lights
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
• Prepared for ISOTTA vacuum system (not included)
• External viewfinders can be mounted, ISOTTA and INON X-2 compatible
• Working depth: 100 meters
• Sizes (LxHxP): 282mm x 186mm x 131mm

Commands

• ON/OFF lever of the Nikon Z 50II
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Zoom dial
• Port safety lever
• Open in-built flash lever
• Photo/video selector
• Picture Control button
• AE-L/AF-L lever
• Video-record button (REC)
• ISO button
• Sub-command dial
• +/- button
• Release mode/Self-timer button
• Delete button
• Mode dial
• DISP button
• Main command dial
• Multi selector buttons
• MENU button
• Playback button
• Playback zoom out/thumbnails button
• Playback zoom in button
• I button
• Monitor mode button

Spare Parts

• 1231 - Set O.R. for Nikon Z 7 and Z 6, Z 7II and Z 6II, Z 50II housings
• 1895 - Housing front lid B120
• 1905 - M16X1 cap

Optional

• Hotshoe for Nikon Z 50II housing
• Manual trigger
• Nikonos 5 bulkhead
• S6 bulkhead
• Vacuum system ISOTTA
• Handle extension
• Right or angled viewfinder
• Upper tray - MEDIUM

In the box

• Housing
• Front lid
• Handles
• Standard ISOTTA viewfinder
• Humidity sensor
• Fiber optic connection bulkhead (to use the flash needs an optional trigger)
• Replacement O-ring kit
• Silicone lubricant 15gr / 0,5 oz
• Warranty: 2 years manufacturer's (excluding batteries)
